Iowa precision hydraulic brakes

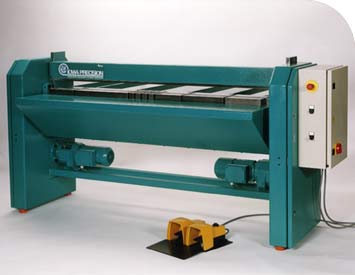

Iowa Precision TDC Wrap Brake

Iowa Precision's TDC Wrap Brake is a freestanding version of the Fabriduct wrap brake. This machine is ideal for forming TDC fittings and wrap duct.

• maximum bend length 120"
• maximum material thickness 16 gauge
• minimum wrap duct size 8 3/4" x 8 3/4"

Rugged welded steel construction

Maintenance - Free bearing & guides

Motorized folding beam

Safety Interlock controls

Dial - Adjust bend angle 0-90 degrees

Automatic TDC notch locator

Motorized clamping beam with automatic return

The Iowa Precision TDC Wrap Brake is a motorized bending machine with PLC control. Simple dial and pointer bend angle setting. The TDC Wrap Brake has a bed of sectioned tooling and a solid upper forming die beam. It is designed to form and L-section or Wrap (one-piece) TDC duct. The TDC Notch Locator positions the duct in the proper bending location for forming. This allows for one-person operation. The machine is also designed to form various length fittings with a TDC or TDF Flange and Pittsburgh or Snap Lock seams.

Optional Precision Back Gauge :

Iowa Precision recommends the TDC Wrap Break be ordered with the optional precision Back Gauge. This back gauge has a digital readout and allows you to preset the bend dimension. This also allows production bending jobs to be run with consistent piece to piece dimensional accuracy.

Optional Sectioned Top Tooling :

Box and Pan bendingn up to 2" flange height is accomplished with the sectioned top tooling for the TDC wrap brake.

Optional Portable Version :

Heavy - Duty casters with cam-actuated lift assembly are available to make it easy to move the TDC Brake around your shop.

SPECIFICATIONS :

• maximum mild steel thickness, 16 gauge
• maximum bend length, 120"
• minimum wrap duct, 8.7" x 8.7"
• heavy duty welded steel frame
• powered top clamping beam
• powered segmented bending leaf
• tDC notch locator
• preset bend angle control
• two stage top beam shut height control
• motorized clamping and bending
