New Machinery / Duct Beaders / Lockformer / 6016 Duct Beader

6016 Power Duct Beader

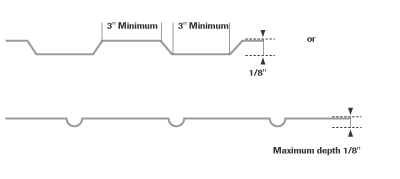

lockformer model 6016 duct beader profiles



Manufacturer:

Condition: New

Description: Beading is a cost-conscious way to stiffen ductwork. It is 5 times faster than cross-braking and uses only one operator. The Lockformer 6016 Beading Roll Former was designed to meet the requirements of SMACNA - producing five (5) beads on 12" centers and is adjustable to 3/16" depth. The machine features a convenient hand-wheel to raise or lower the top roll assembly to set depth of bead. The top and bottom rollers are kept parallel with adjustable screw and pillow block assemblies connected by a link chain. Individual adjustable screw and pillow block assemblies connected by a link chain. Individual collared beading rolls are replaceable. Feed rolls are self-compensating over the entire gauge range. Double entrance feed bars are provided so that material can be gauged from either left or right side.

Specifications:

  • Capacity: 16-30 gauge
  • Speed: 3/4 HP
  • Motor/ Voltage: 115/230 volts, 60 cycle, single phase, A.C. 1,800 RPM
  • Dimensions: Length - 42-3/4", Width - 79-1/2", Height - 32 "
  • Weight: 1,650 lbs

View Operator Manual Here
