EasyCut Plasma Tables
Designed with cost reduction in mind , this plasma table
is perfect for light fabrication shops, HVAC applications and schools.
Operaters enjoy working with the EasyCut Plasma Machines for its user-friendliness
and ease of operation.
Size : 4'x4' Plasma Table width 84"
(2133mm) , Table Length 72" (1828mm)
Size : 4'x8' Plasma Table width 84"
(2133 mm) , Table Length 96"(2438mm)
Size : 5'x10 ' Plasma Table width 96"(2438mm),
Table Length 144'’(3658mm)
Housing : Mono frame. Waterbed or Downdraft
Bridge : 4" x 4" in aluminum
Height Control : Machitech mechanized control. Option
Automatic height control
Controller : Standard PC control
CNC Software : Machitech CNC software
Controller Power Supply : 115 VAC, 1ph, 60 Hz
Tool available : Maximum 2
Speed Cutting : up to 300 ipm, Travel: 400 ipm
Plasma available : All Powermax product line from Hypertherm
Plasma Power Supply : From 200 to 600 vac, 3 Ph. 50/60
Hz, CSA
Option : Oxyfuel torch, Pneumatic scriber, Laser pointer
Software : Nestmaster2, Design2Fab 5

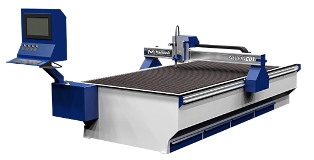

Silver Cut Pro / HD Plasma Table
Affordable Industrial Plasma Table.
The Machitech Silver Cut™ Plasma Table is the most affordable industrial cutting machine on the market thanks to its use of high quality components and the Powermax Plasma System from Hypertherm
Features :
Top-of-the-line Standard Features
Available sizes: 5’x10’ or 6’x12′
Unitized contruction, built with compactness in mind
Magnetic Torch Breakaway System
Machitech Automatic Torch Height Controller
Powerful 940 oz-in Nema 34 motors with zero backslash drive system
Self-cleaning DualVee Linear slide system
Fully-welded and Machined tables (Downdraft or Water)
6”x6” Aluminum Gantry
Agma 10 Straight Rack & Pinion on all axis
Cables and hoses are protected by an Enclosed Power Track
Machine Specifications:
Table Capacity: 1.5″
Clearance Under Gantry: 5″
Cutting Speed: 500 IPM (related to process)
Max Speed Traverse: 600 IPM
Repeatability: 0.003″
Positioning Accuracy: 0.004″
Return to TOP

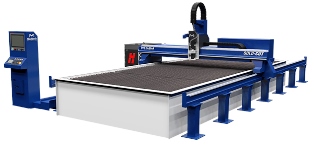

GoldCut Plasma
Table
Sheet metal to heavy plate capability.
The Machitech GoldCut™ is a flexible gantry and rails system designed to be used with an existing downdraft or water table. Featuring Hypertherm HPR and XPR plasma, it's a good solution for customers looking for high volume production.
Top-of-the-line Standard Features:
Available sizes: 5’x10’ up to 10’x40’ (custom available)
Heavy Duty Gantry & Rails System
Modular design allows for table expansion if needed
Magnetic Torch Breakaway System
Machitech Automatic Torch Height Controller
Bosch Rexroth AC Servo Motor Drives (Ethercat)
Self-cleaning DualVee Linear slide system on pedestals
Can use existing table or build your own with supplied plans
Machitech can supply a downdraft or water table (option)
6”x8” Steel Gantry Fully Machined and Welded
Oversized End-trucks for Maximum Stability
Agma 10 Helical Rack & Pinion on all axis
Bosch Linear Ways on gantry
Ultra-precise Helical Planetary Gearboxes
Heat shield under gantry to protect against heat
Cables and hoses are protected by an Enclosed Power Track
Machine Specifications:
Table Capacity: 4″
Clearance Under Gantry: 6.5″
Cutting Speed: 500 IPM (related to process)
Max Speed Traverse: 1000 IPM
Repeatability: 0.001″
Positioning Accuracy: 0.003″
Return to TOP

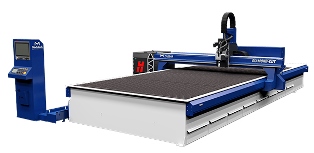

Diamond Cut Plasma Table
Sheet metal to heavy plate capability.
The Machitech Diamond Cut™ Plasma Table is a compact industrial cutting system designed for accurate & productive high precision cutting applications. It’s unitized construction and patented inverted linear rails provides exceptional accuracy and cut quality.
Top-of-the-line Standard Features:
Available sizes: 5’x10’ up to 12’x45’ (custom available)
Unitized contruction, build with Compactness in mind
Heavy Duty Construction for High Production needs
Magnetic Torch Breakaway System
Machitech Automatic Torch Height Controller
Bosch Rexroth AC Servo Motor Drives (Ethercat)
Innovative Patented Inverted Rails System
Fully-welded and Machined tables (Downdraft or Water)
6”x8” Steel Gantry Fully Machined and Welded
Oversized End-trucks for Maximum Stability
Agma 10 Helical Rack & Pinion on all axis
Bosch Linear Ways on Machined surfaces
Ultra-precise Helical Planetary Gearboxes
Heat shield under gantry to protect against heat
Cables and hoses are protected by an Enclosed Power Track
Machine Specifications:
Table Capacity: 4″
Clearance Under Gantry: 8.5″
Cutting Speed: 500 IPM (related to process)
Max Speed Traverse: 1800 IPM (on 480v drives)
Repeatability: 0.001″
Positioning Accuracy: 0.002″
Return to TOP

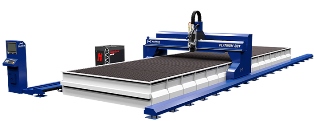

PlatinumCut Plasma Table
Heavy Plate Cutting and High Volume.
The Machitech PlatinumCut™ Plasma Table is a custom industrial cutting solution for steel industries such as shipyards, plate processing facilities and structural steel fabricators. With its Gantry & Rails design, its ideal for customers that already have a table bed or that wants to build its own with the supplied drawings
Top-of-the-line Standard Features:
Available Sizes: 10’x20’ up to 30’x150’ (custom available)
Gantry & Rails System, modular for expansion down the road
Heavy Duty Construction for High Production needs
Magnetic Torch Breakaway System
Machitech Automatic Torch Height Controller
Bosch Rexroth AC Servo Motor Drives (Ethercat)
Innovative Patented Floor Mounted Inverted Rails System
Fully-welded and Machined tables (Downdraft or Water)
12”x12” Heavy Duty Fully Machined Steel Gantry
Oversized End-trucks for Maximum Stability
Agma 10 Helical Rack & Pinion on all axis
Bosch Linear Ways on Machined surfaces
Ultra-precise Helical Planetary Gearboxes
Heat shield under gantry to protect against heat
Cables and hoses are protected by an Enclosed Power Track
Machine Specifications:
Table Capacity: 8″ (custom available)
Clearance Under Gantry: 12″
Cutting Speed: 500 IPM (related to process)
Max Speed Traverse: 1000 IPM
Repeatability: 0.001″
Positioning Accuracy: 0.002″
Return to TOP

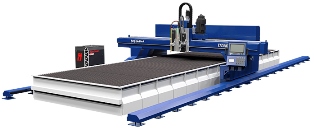

Titanium Cut Plasma Table
Heavy Plate Cutting, Drilling and Tapping.
The Machitech Titanium Cut™ Plasma Table is a plate processing machine engineered for the most demanding customers such as Steel Service Centers, Ship Building and Structural Steel Applications. It's the perfect plate processing machine for high production volume & industrial drilling and tapping.
Top-of-the-line Standard Features:
Available sizes: 10’x20’ up to 30’x300’ (custom available)
Gantry & Rails System, modular for expansion down the road
Double 12”x12” Heavy Duty Fully Machined Steel Gantry
Heavy Duty Construction for High Production needs
40HP Suhner Drilling and Tapping Station
6 station automatic tool changer
Magnetic Torch Breakaway System
Machitech Automatic Torch Height Controller
Bosch Rexroth AC Servo Motor Drives (Ethercat)
Innovative Patented Floor Mounted Inverted Rails System
Fully-welded and Machined tables (Downdraft or Water)
Oversized End-trucks for Maximum Stability
Agma 10 Helical Rack & Pinion on all axis
Bosch Linear Ways on Machined surfaces
Ultra-precise Helical Planetary Gearboxes
Heat shield under gantry to protect against heat
Cables and hoses are protected by an Enclosed Power Track
Machine Specifications:
Table Capacity: 8″ (custom available)
Clearance Under Gantry: 12″
Cutting Speed: 500 IPM (related to process)
Max Speed Traverse: 1000 IPM
Drilling Diameter: 3″
Tapping Diameter: 1.5″
Repeatability: 0.001″
Positioning Accuracy: 0.002″
Return to TOP
Titanium Cut Plasma Table
Pipe & Tube CNC Processing Machine.
The Machitech Pipe Cut™ is an Industrial CNC Plasma Pipe & Tube Processing Machine for all types of industries. They feature a floating chuck system to prevent pipe slippage, a motorized in-feed conveyor and pneumatic support rollers.
Top-of-the-line Standard Features:
Rigid gantry style construction
Pipe range: 2.5” up to 48” diameter
Cutting zone length: 21′ or 42′
Machitech Automatic Torch Height Controller
Bosch Rexroth AC Servo Motor Drives (Ethercat)
Patented Inverted Rails System
Bosch Linear Ways on Machined surfaces
Weld prep, mitres, saddles, holes, slots, gussets, etc.
Chuck driven: precise, no slippage
Automatic chuck height & clamping
Floating chuck for out of round pipes
Motorized in-feed conveyor: up to 60’
Patented inverted rails system
Pneumatic support roller units
Machine Specifications:
Table Capacity: 2.5 to 30″ diameter
Clearance Under Gantry: 8.5″
Cutting Speed: 500 IPM (related to process)
Max Speed Traverse: 800 IPM
Repeatability: 0.001″
Positioning Accuracy: 0.003″
Return to TOP
