| Norlok Surelok Fitting Machine
Norlok

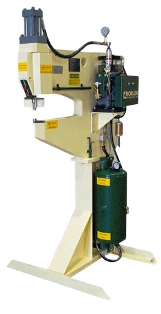

Heavy Duty SURELOK
Available in 18” or 25” throat, the Heavy
Duty SURELOK model provides the ultimate strength to
ensure all of your heavy material applications are taken care
of. This air over oil booster powered machine can clinch material
up to an astounding 10g.
Description:
Available in 18” or 25” throat depths
Typical shear strength for 2-ply 10g mild steel is 1400lbs
per clinch
Fasten materials as thin as 24g and as thick as 10g
A double foot pedal controls the 1-1/2” low-pressure
approach stroke and 1/2” high- pressure clinching stroke
for added safety
Specially designed arm and form for even greater part access
Uses standard shop air supply. No electrical hookup.
Small footprint
Features of the Norlok Surelok Fitting Machine:
Press Design: Solid 3” steel “C” frame
Features:
Air over oil intensifier unit
Air surge tank and regulator
Dual foot pedal operated
Stroke: 2" max., ½” high pressure
Throat: 18” or 25”
Work Height: 45"
Upper Tooling:
Quick change punch
Hardened steel punch stripper
Lower Tooling Die insert in a 2-piece hardened die plate
Capacity MAX: Two ply 0.138” mild steel
MIN: Two ply 0.028” mild steel
Air Requirements 60psi to 80psi 65psi (recommended)Approx.
0.8 cu ft free air per cycle (3 HP @ 20 clinches per minute)

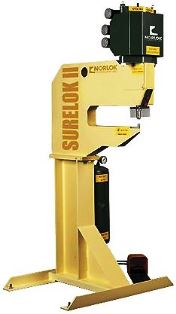

SURELOK II – E & P SERIES
The standard floor mounted machines are guaranteed to outperform
the competition. The SURELOK II - Eseries
machine is our basic entry level machine that offers proven clinching
technology.
The SURELOK II - P series is our production
oriented machine. Successor of our SURELOK II - E series
machine, the Pseries offers
greater clinching versatility and is able to fasten material from
as thick as 14 gauge to as thin as 32 gauge. Proven clinching
technology you can count on.
The SURELOK II - E and P series’ operating
features and versatile designs offer solid and reliable machines
that become your go-to clinching solutions.
Features of the Norlok SurelokII
Fitting Machine:
Rigid steel frame offers less deflection for longer
tool life
Close tooling access to get in close for more applications
Fast cycle times for increased production
18” or 25” throats for greater reach
for larger parts
“Intelligent” safety stroke for greater
operator safety
Direct acting power stroke for more reliable joints
Simple tool adjustments for little or no setup time
Adjustable stroke that reduces pinch point and air
consumption
Upgradeable feature allows you add what you need,
when you need it
23 years of design experience with proven reliability
and quality
Air powered (requires no electrical hookup)
Affordable prices for low investment and faster payback
Options of the Norlok Surelok II Fitting Machine:
Production punch assembly
Modular tooling assembly
Automatic return
Advanced power Unit
Extended warranty
High speed control
Laser pointer
Pipe Diameter 4"Ø Reach into pipe 6"
Pipe Diameter 5"Ø Reach into pipe 11"
Standard Features for the Norlok Surelok II Clinching
/ Fastening Machine:
Throat 18" or 25" Choose the depth of frame behind punch
Urethane punch assembly Reliable tooling with urethane stripper
Close reach lower arm Clinch in tight areas – also great
for pipes
2 piece die holder and insert Fast to change and easy to clean
Adjustable stroke Adjust open height to minimize pinch point
“Intelligent” Safety stroke Reduces pinch point to
less than 1/4" even with 1" stroke
Lexan guard Eye protection without restricting access
Air surge tank Minimizes the effects of poor air supply
Air filter / regulator Nothing to add – just plug your air
line into the tank
Frame mounted tool kit All tools required for adjustments are
included
SURELOK III Introducing Norlok's newest floor
mounted problem solver with a 25” throat. The new SURELOK
III is designed for all clinching applications and
is faster, smoother, quieter and uses less air than ever before.
This stainless steel ready machine offers a no hassle 2 minute
changeover for efficient operation and production.
Description:
25” throat
Stainless steel ready with simple punch and die changeover
Clinches material with 5 tons of force smoothly and efficiently
using only 90psi shop air.
Tooling adapters designed for sheet metal work that needs
a 5 ton press.
Adjustable 2 1/2” stroke
Convenient adjustment for accuracy and safety
Self Piercing Rivet kit available for any SURELOK III to
join aluminum composite materials, TPO and PVC coatings. No
pre drilled holes required.
STANDARD FEATURES:
Throat: 25" Choose the depth of frame
behind punch Round Punch: Comes with 1 punch, 3 Dies, Punch
Stripper, and Die Collar Close reach lower arm: Clinch in tight areas
– also great for pipes 2 piece die holder and insert: Fast to change
and easy to clean Adjustable 2 1/2" stroke: Adjust open
height to minimize pinch point “Intelligent” Safety stroke: Reduces
pinch point to less than 1/4" (6.4mm) even with 2 1/2"
(64mm) stroke. High speed control: 1 touch operation with
increased speed & reliability
– includes pressure sensing circuit. Laser pointer: Shows where clinch will be made
– easy to use
– meets all regulations for laser pointers. Air Filter / Regulator / Shutoff: Nothing to
add – just plug your air line into the shut off valve Extended Warranty: standard warranty is 3 years
(punches and dies excluded).
OPTIONS:
Rectangular Tooling (for Stainless Steel, non-rotating,
and Multi layer applications)
1 Complete Set of tooling for 0.12" (3mm) Rectangular clinching.
Includes a Punch Stripper for Rectangular Punch and a Die Collar
for Rectangular Die.
Reversible Tooling (Punch or Die mounts in upper or
lower tooling) 1 Set of tooling as either Ø0.18 Round (4.6mm)
or 0.12" (3mm) Rectangular clinching.
Includes a Punch, Punch Stripper, and Tooling shaft. [Dies sold
separately]
