Punches | Roper Whitney Model 134 Punch | Sheet metal Punching Machine

Roper Whitney 134 Punch

The Roper Whitney Model 134 Punch is designed for the small shop, this press economically upgrades production capability. For convenient set-up, operator efficiency and increased productivity the press has a control system that allows the operator to choose job (for set - up) or run (for production) simply and conveniently. The Roper Whitney 129 punching machine also has adjustable stroke length and a full "override" capability.

Standard Equipment For Roper Whitney Model 134 punch:

  • side gauge
  • depth gauge
  • one F8 and F28 punch holder
  • one no. 20 and No. 40 die adaptor
  • H2 3/4 " die shoe
  • one 1/2" round punch and die
  • one set stripper arms
  • A7 stripper plate
  • Gauge work table

Specifications For Roper Whitney 134 Punching Machine:

  • Throat height at ram - 10 Inches
  • Throat depth - 24 inches
  • length of stroke - 1 inch
  • ram adjustment - 3/4 inch
  • bed plate holes - 6 3/4 inches
  • diamater of punch shank hole in ram - 1 inch
  • depth of punch shank hole in ram - 1 1/4 inch
  • slug clearance - 3x5 inches
  • maximum rated capacity - 8 tons

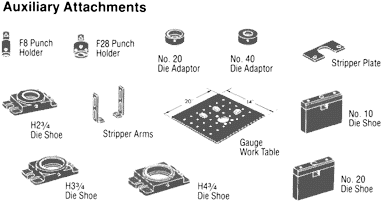

Roper Whitney Model 134 Punching Machine Auxiliary Attachments

Roper Whitney 134 Punching machine , seperate auxiliary attachments can be purchased for your punching sheet metal needs



Roper Whitney 134 Punching machine - size ranges for punching sheet metal
