Roper whitney Notchers | Hand notchers

Roper Whitney Hand Operated Notchers come in both bench style and portable hand tool styles. They provide a variety of special capabilities: notching, box forming, dove tailing, coping and corner shearing ; for sheet metal, angle iron, and flat stock.

These handy tools, operating on heavy duty bearings, trim, notch and cope (PS-66) up to 16 gauge sheet metal. The PS-66 is somewhat more rugged in construction and can be used to make inside cuts and to shear with only one side of the blade, which is not recommended with the No. 100. Both shears have adjustable blades, duplicate scales, adjustable gauge stops, and finger guard. Both the upper and lower blades are replaceable. Box flange blades are offered in both models and each has the option of a floor mount stand.

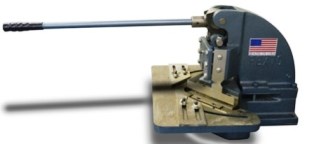

Roper Whitney Model PS-66 Notcher

  • Hand Operated
  • Bench or Floor Mounted
  • Adjustable Gauge Stops
  • Replaceable Blades
  • Finger Guards

Return to TOP



Roper Whitney No. 100 Notcher

  • Hand Operated
  • Bench or Floor Mounted
  • Adjustable Gauge Stops
  • Replaceable Blades
  • Finger Guards



Return to TOP

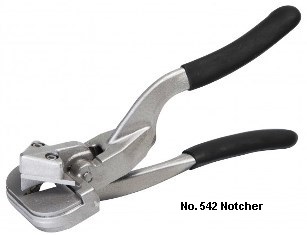

Roper Whitney Pexto Models 541 & 542 Portable Hand Notchers

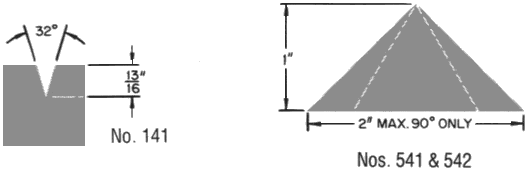

Designed for notching either 90° (No. 541) or 45° (No. 542) up to 20 gauge mild steel with minimal effort. The No. 541 Series notcher is capable of a 1" depth of notch featuring a built-in metal stop.

Specifications:

  • No. 541 Notcher - 90° blade and die - will fit only No. 541
  • No. 542 Notcher - 45° blade and die - will fit only No. 542
  • 45°- 90° notching
  • 20 gauge mild steel

Additional Information:
Weight: 2 lbs
Dimensions: 11 x 4 x 4 in
Length: 9 in/ 229 mm
Capacity: Mild Steel - 20 ga/ 100 mm

Return to TOP

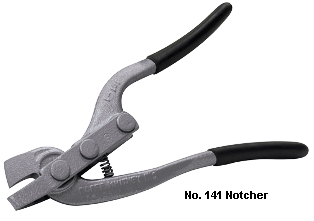

Roper Whitney Pexto No. 141 Portable Hand Notcher

Designed for fast, accurate 32° notch on sheet metal. Hook design of jaws permits notching to exact desired depth without slippage and with minimum effort. Spring-return jaws.

Specifications:

  • For fast, accurate 32° notching. Hook nose jaws permit notching to exact depth without slippage and with minimum effort. Spring-Return jaws
  • 45°- 90° notching
  • 20 gauge mild steel

Additional Information:
Weight: 1 lb
Dimensions: 10 x 2 x 3 in
Length: 9 in / 229 mm
Capacity: Mild Steel - 20 ga/ 1.0 mm

roper whitney portable hand notching hand tools

Return to TOP
