Tennsmith Box and Pan Brakes | Finger Brakes | sheet metal brakes
Tennsmith Box and Pan Hand Brakes
TENNSMITH'S bench-mounted hand brakes
are rugged, dependable USA-made tools that won't break your budget.
Model HBU48-16 is a heavy-duty bench brake suitable
for box and pan or straight bending in up to 16-gauge mild steel. The
brake features a removable apron angle and apron insert permitting 1/4-inch
reverse bends in lighter materials. The upper leaf and nose bar has
a wide range of adjustment for radius bending. Standard equipment includes
an apron stop rod for repeat bends, extension handles and a counterweight.
Model U48-22 is a lighter capacity version of the four-foot
bench brake, which offer economical alternatives in working 22-gauge
and lighter materials. Also, their lighter weights make these models
better suited for transporting to remote job sites.
TENNSMITH'S bench-mounted hand brakes provide an economical
means of performing a wide range of sheet metal bending and forming
operations. These brakes are of all-steel welded construction, readily
adjustable and utilize bronze bearings at pivot points.

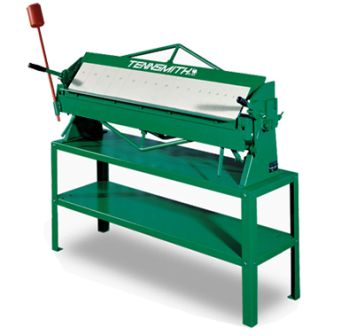

*Shown with Optional Stand
Tennsmith Model HBU48-16
Box and Pan Hand Brake
Specifications Of Tennsmith Model HBU48-16 Box & Pan Brake:
- Capacity, Mild Steel: 16 gauge
- Bending Length: 48 1/4"
- maximum depth of box: 4 "
- Maximum lift of beam: 1 1/4"
- Front to rear beam adjustment: 5/8"
- Minimum reverse bend: 1/4"
- Minimum flange in capacity material: 1"
- Finger widths: 2",3",4"
- shipping weight: 495 lbs
Return to TOP
Tennsmith Model HBU72-16 Box and Pan Hand Brake
Specifications Of Tennsmith Model HBU72-16 Box & Pan Brake:
- Capacity, Mild Steel: 16 gauge
- Bending Length: 72"
- Maximum depth of box: 4"
- Maximum lift of beam: 1 1/2"
- Front to rear beam adjustment: 1"
- Minimum reverse bend: 1/4"
- Minimum flange in capacity material: 1"
- Finger widths: 2",3",4"
- shipping weight: 1700 lbs
Return to TOP
Tennsmith Model U48-22
Box and Pan Hand Brake
Specifications Of Tennsmith Model U48-22 Box & Pan Brake:
- Capacity, Mild Steel: 22 gauge
- Bending Length: 48 1/4"
- Maximum depth of box: 3"
- Maximum lift of beam: 7/8"
- front to rear beam adjustment: 1/4"
- Minimum reverse bend: 5/16"
- Minimum flange in capacity material: 3/8"
- Finger widths: 2",3",4"
- shipping weight: 280 lbs
Return to TOP
