Tennsmith Hand Rolls | Sheet Metal Roll bending machine

Tennsmith Manually Operated Hand Rolls/Slip Rolls

Tennsmith Manual Hand Rolls

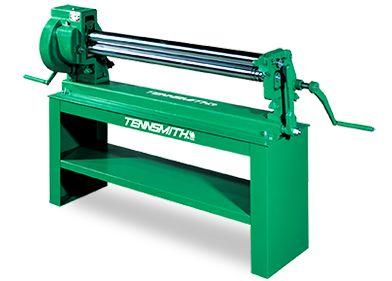

*Shown with Optional Stand

TENNSMITH’S slip rolls combine precision-turned, ground and polished high carbon steel rolls with heavy-duty, cast iron end frames and a welded steel base to make an accurate and durable forming tool. Convenient operating features include large roll adjusting screws, scales for speeding repeat set-up, and a front-mounted handle to lift the upper roll for material removal. Wire grooves are standard.

TENNSMITH’s initial pinch slip rolls are heavy-duty, affordable, production tools for forming curved parts and tubes. Models SR48, SR324, SR336 and SR342 rolls have three gear-driven roll drives that ensure even starting and feeding of capacity materials. These same models also feature constant drive of the rolls. All three rolls continue to drive throughout their adjustment range.

The SR48 gearing features a 4:1 reduction ratio for ease of operation of heavy materials. All gears are fully enclosed for safety and protection from the elements.



Tennsmith Model SR24 Hand/Slip Rolls

Specifications For Model SR24 Slip Rolls / Hand Rolls:

  • Capacity, mild steel: 20 gauge
  • Maximum forming length: 24"
  • Diameter of rolls: 2"
  • Minimum forming radius: 1"
  • Wire grooves: 3/16", 1/4", 5/16"
  • gearing ratio: n/A
  • Dimensions: 38"x19"x19"
  • shipping weight: 190 lbs

Return to TOP

Tennsmith Model SR36 Hand/Slip Rolls

Specifications For Model SR36 Slip Rolls/Hand Rolls

  • Capacity, mild steel: 22gauge
  • Maximum forming length: 36"
  • Diameter of rolls: 2"
  • Minimum forming radius: 1"
  • Wire grooves: 3/16", 1/4", 5/16"
  • gearing ratio: n/A
  • Dimensions: 51"x19"x19"
  • shipping weight: 250 lbs

Return to TOP

Tennsmith Model SR42 Hand/Slip Rolls

Specifications For Model SR42 Slip Rolls/Hand Rolls:

  • Capacity, mild steel: 24 gauge
  • Maximum forming length: 42"
  • Diameter of rolls: 2"
  • Minimum forming radius: 1"
  • Wire grooves: 3/16", 1/4", 5/16"
  • gearing ratio: n/A
  • Dimensions: 57"x19"x19"
  • shipping weight: 270lbs

Return to TOP

Tennsmith Model SR324 Hand/Slip Rolls

Specifications For Model SR324 Slip Rolls/Hand Rolls:

  • Capacity, mild steel: 20 gauge
  • Maximum forming length: 24"
  • Diameter of rolls: 2"
  • Minimum forming radius: 1"
  • Wire grooves: 3/16", 1/4", 5/16"
  • gearing ratio: 1:1
  • Dimensions: 38"x19"x19"
  • shipping weight: 215 lbs

Return to TOP

Tennsmith Model SR336 Hand/Slip Rolls

Specifications For Model SR336 Slip Rolls/Hand Rolls:

  • Capacity, mild steel: 22 gauge
  • Maximum forming length: 36"
  • Diameter of rolls: 2"
  • Minimum forming radius: 1"
  • Wire grooves: 3/16", 1/4", 5/16"
  • gearing ratio: 1:1
  • Dimensions: 51"x19"x19"
  • shipping weight: 275lbs

Return to TOP

Tennsmith Model SR342 Hand/Slip Rolls

Specifications For Model SR342 Slip Rolls/Hand Rolls:

  • Capacity, mild steel: 24 gauge
  • Maximum forming length: 42"
  • Diameter of rolls: 2"
  • Minimum forming radius: 1"
  • Wire grooves: 3/16", 1/4", 5/16"
  • gearing ratio: 1:1
  • Dimensions: 57"x19"x19"
  • shipping weight: 295 lbs

Return to TOP

Tennsmith Model SR48 Hand/Slip Rolls

Specifications For Model SR48 Slip Rolls/Hand Rolls:

  • Capacity, mild steel: 16 gauge
  • Maximum forming length: 49"
  • Diameter of rolls: 3"
  • Minimum forming radius: 1 1/2"
  • Wire grooves: 3/8", 1/2 ", 5/8"
  • gearing ratio: 4:1
  • Dimensions: 77"x30"x22"
  • shipping weight: 1100 lbs

Return to TOP
