ACS Cutter-II-510
CNC Cutting System
The Cutter II cutting system
was introduced to the market in 2006 as the latest model in the
Advance Cutting Systems product line. The Cutter
II is a state of the art Computer Numerically Controlled
(CNC) Cutting System designed to use a plasma-cutting torch to
cut out geometrical shapes and parametrically programmed HVAC
(Duct Work) fittings. The fittings are programmed in the office
using Profile Master PM-2000 Duct-CAM (Computer
Aided Manufacturing) software; the parts are then nested on a
sheet of metal to minimize material waste and are then cut out
at high speed with the plasma torch.
CUTTING TABLE FEATURES
& SPECIFICATIONS:
The Cutter-II is offered in 5' x 10' , 5'
x 20' or 6' x 12' models.
As standard features, the Cutter -II includes
the Hypertherm Ti Touch Screen Color Graphic Control, Hypertherm
Powermax 1000 Plasma, Floating Head, Dell Office Computer, Dell
Color Laser Printer, Down-draft Cutting Table and On-site Installation
and Training.
Cutting Area : 5' X 10' or 6' x 12' single table,
5' X 20' dual table
Positioning Accuracy : +/- .012 inch
Pierce Capacity : (Max) 5/8" Depending on the plasma
Traverse Speed : (Max) 1,400 Inches per Minute
Controller : Hypertherm Ti Touch Screen Color Graphic
Drive System : Direct Drive Servo Motors through Planetary
Gear Box to Rack and Pinion
Standard Torch Height Control : Floating head
Standard Plasma : Hypertherm Powermax
Computer System : Dell Desktop Computer with Color Laser
Printer
Software:
PM-2000 Duct-CAM software includes SMACNA classifications
and a fitting library of over 300 Rectangular Fittings, Round
Fittings, Oval Fittings, Square to Round Fittings, Transitions,
Multi-tap Fittings and more. PM-2000 also segments oversize fittings
and produces management reports and tracking labels. PM-2000 can
also be integrated with CAD-Duct (Computer Aided Drafting) and
EST-Duct HVAC Estimating software offering the only “Totally
Integrated Solution” to the HVAC contractor. Technical Sales
International (TSI) is the supplier of CAD-Duct and EST Duct for
North America.
Profile Master PM-2000 / Duct Cam Features:
Profile Master Photo
Windows XP Based
Rectangular Fittings
Round Fittings
Oval Fittings
Geometric Fittings
Automatic Nesting
Manual Nesting
Oversize Part Segmentation
Opus 4 CAD Drawing
DXF files in and out
Management Reports
Part lables
The Fabmaster-II plasma cutting
system is designed for the Job Shop, Structural Steel Fabricator,
Steel Service Center and Miscellaneous Steel Fabricator. The Fabmaster-II
is one of our most versatile cutting machine platforms, allowing
the customer to add Conventional Plasma, Precision Plasma, Plasma
Marking, Scribing and Multiple Oxy-fuel Cutting Heads.
The Fabmaster-II is designed to cut out geometric
shapes and parametrically programmed Blow Pipe Fittings or Structural
Steel Base Plates. The parts are programmed in the office using
Profile Master PM-2000 Fab-CAM (Computer Aided
Manufacturing) software; the parts are then nested on a sheet
of metal to minimize material waste and are then cut out at high
speed using a Plasma Torch or an Oxy-fuel Torch. Parts can also
be imported from AutoCad, X-Steel, SDS or other popular programming
systems.
Overview:

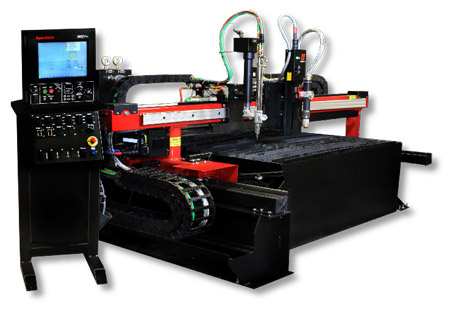

The Plate Pro II is a metal cutting machine that
utilizes plasma and oxy-fuel cutting technology to cut through
metal. The Plate Pro II is :
Affordable
Easy to Install
Simple to Operate
It is customized to meet your specific metal cutting needs. You
can have your customized Plate Pro II metal cutting
machine installed and up and running at your facility.
The Plate Pro II is the most competitive in
its' class. As well as being very affordable, the Plate Pro II
is full featured, easy to install, and simple to operate. The
Plate Pro II is very practical for areas with
limited space.
Plate Pro II Benefits:
Plasma or Oxy-fuel cutting process capatible
Standard Equipment:
Emergency Stop Button: To quickly and safely
shut off machine motion and cutting process, including oxy-fuel
gases to the torch Maintenance Free Guide Rollers: Sealed bearings
for linear roundway. Rail Axis & Cross Axis Limit Switches: Used
for over-travel as well as homing of the machine. Slave Carriage Band Clamp: allows easy and accurate
placement and spacing of tools such as, oxy-fuel and plasma torches. Operator Console: Hard-wired switches for selecting
oxy-fuel station, oxy-fuel processes and gas system control. The
CNC is mounted to a remote pedestal. Rail Axis Cable Carrier: Is mounted to the rail
pedestal weldment. The cable carrier keeps all of the hoses &
cables organized during machine movement. Linear Way and Heat Shields: Replaceable linear
roundway provides for a smooth and accurate cutting motion. Heavy
duty heat shields protect machine from heat and sparks. Large Diameter Drive Pinions: Large diameter
pinions offer accurate and smooth machine motion. Maintenance Free Guide Rollers: Sealed bearings
for linear roundway Electrical Panel: Offers "off-the-shelf"
components including Yaskawa drives and motors. Rail Axis Drive Rail: Precision ground rail and
rigid pedestal weldment provides the stability for smooth and
accurate machine motion.
Optional CNC Controls:
Option CNC Control Choices includes: Hypertherm's
EDGE Pro Shape Cutting Motion Controller Or Burny's 10LCD Plus
Shape Cutting Motion Controller. Plasma Systems & Options:
Hypertherm and Victor Thermal Dynamics are the brands of conventional
plasma cutting systems which allow production cutting from 1/2"
mild steel to 1" mild steel. Laser Pointer: Allows operator a visual indicator
for plate alignment and torch positioning.
Plasma Height Control & Options:
Plasma Height Control & Options include:
Hypertherm Senso PHC, INOVA Arc Voltage, Hypertherm ArcGlide Torch
Height Control, and Manual Plasma Bevel Station.
Oxy-Fuel Systems & Options:
Oxy-Fuel Systems & Options include: Oxy-fuel
Manual Bevel Attachment, Twin Tip Holder, D7 Cutting Tips, Auto
Ignitor, Oxy-fuel Torch stations, Marking options, Hi-Lo Oxy-Fuel
gas system with Auto Ease-On.
Table Options:
Table Options include: Downdraft Cutting Table
and Water Cutting Table Downdraft Table Trip Arm: Mechanical trip arm
that opens and closes zones in the Koike Downdraft table. No pneumatic
or electrical components are required.
Fume Extraction Unit - made by Donaldson ExtraLife™
CNC Air Conditioning Unit is available for those who live in climates
of above 120 degrees F (49 degrees C)
Model Comparison:
Cutting Width: FM-II Models 510, 512, 520, 524: 5' FM-II
Models 610, 612, 620, 624: 6' FM-II Models
810, 812, 820, 824: 8'
Cutting Length: 10',12',20' or 24' Positioning Accuracy: +/- .012 inch Traverse Speed: 600 inches per minute Drive System: AC Servo Motors / Planetary Gears
/ Rack & Pinion Cutting Table: Optional - Normally manufactured
by the customer Processes Available: Oxy-Fuel, Plasma and Plasma
Marking
Cutting Table Controller: Controller Type: KAR Color Graphic Industrial
Grade Controller Shape Library: Geometric shapes graphically displayed Data Transfer: RS-232 or USB Key Part/Sheet Storage Ability: Yes Automatic Part/Plate Alignment: Yes Stand-Alone Capability: Yes
Plasma Power Unit: Standard: Hypertherm Powermax1000 or Kaliburn
SR-45i Optional Plasma units available Hypertherm: Powermax1250,
Powermax1650, Max200, Kaliburn SR-100i, Fineline FL-100, FineLineFL-200 Maximum Plasma Power: 200 Amp (2 ea 100 Amp units,
or 1ea 200 Amp unit) Plasma Gas: Depends on the Plasma unit Computer System: Desktop Computer w/ Monitor,
Mouse, Keyboard and Printer
Software:
PM-2000 Fab-CAM software includes the Opus4 2-D
CAD Drawing Package, Geometric Parts Library, Multiple Torch Nesting,
Automatic Nesting and Manual Nesting and includes a Blow Pipe
Library of over 300 Rectangular Fittings, Round Fittings, Oval
Fittings, Square to Round Fittings, Transitions, Multi-tap Fittings
and more. PM-2000 also produces Management Reports and Tracking
Labels.
PM-2000 can also be integrated with CAD-Duct
(Computer Aided Drafting) and EST-Duct Blow Pipe Estimating software
offering the only “Totally Integrated Solution” to
Mechanical Contractors. Technical Sales International (TSI) is
the supplier of CAD-Duct and EST-Duct for North America.
Fab-CAM Features: Windows XP Based
Blow Pipe Fittings
including Round, Square to round & Oval
Rotations
Scaled 3-D Fitting Preview
Flat pattern Unfolded Preview
Opus-4, 2-D Cad Drawing package
Nesting (Automatic & Manual)
Oversize Part Segmentation (Automatic & Manual)
User Definable Reports
DXF files in and out
