sheet metal bar folders / Benders / Hemming

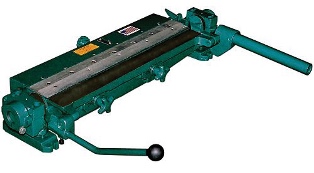

Tin Knocker No. 30 Bar Folder

Tin Knocker's affordable, versatile 30" bar folder uses one motion to clamp and fold to a desired angle. The Tin Knocker No. 30 bar folder is easy to adjust with an internal back gauge which allows for quick flange width selection.

Specifications:
Capacity: 22 Ga. Mild Steel
Maximum Bend Length: 30"
Flange Width Gauging Range: 1/8"– 1"
Dimensions: 48"x20"x13"
Weight: 334 lbs.

**Optional stand is also available**

Return to TOP

Go to Tin Knocker Machinery Page

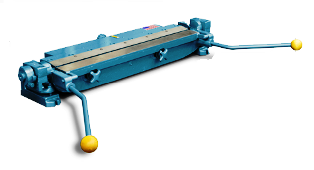

Roper Whitney No. 63 or No. 055 Adjustable Bar Folder

Roper Whitney offers a versatile, adjustable sheet metal bending machine that performs many essential sheet metal operations using one motion to clamp and fold. The Roper Whitney No. 63 sheet metal Bar Folder accommodates up to 30 inch lengths of a maximum 22 gauge. The No. 055 sheet metal Barfolder will fold maximum 36 inch lengths of up to 20 gauge mild steel. Quick set back gauge included in the price of the Roper Whitney bar folder . Roper Whitney's steel floor stand is available as a separate accessory for the Bar Folder.

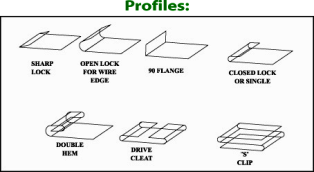

Sheet Metal Bending Profiles for Roper Whitney's Sheet Metal Bar Folder:

  • Sharp Lock
  • Open Lock for wire edge
  • 90 degree flange
  • closed lock or single hem
  • double hem
  • drive cleat
  • "S" clip

Roper Whitneys bar folder profiles of what this bar folder can do for your sheet metal folding needs ... Sharp Lock , Open Lock For Wire Edge, 90 Degree Flange, Closed Lock Or Single Hem, Double Hem, Drive Cleat, S Clip

Specifications for Roper Whitney's Model # 63 Bar Folder

Max. Bend length (in.) - 30
Capacity, mild steel (ga.) - 22
Gauging range (in.) - 1/8-1
Max. round fold dia. (for wire) (in.) - 1/4
Weight - 325 Lbs.
Dimensions - 42" X 26" X 7"

Specifications for Roper Whitney's Model # 055 Bar Folder

Max. Bend length (in.) - 36
Capacity, mild steel (ga.) - 20
Gauging range (in.) - 1/8-11/4
Max. round fold dia. (for wire) (in.) - 3/8
Weight - 485 Lbs.
Dimensions - 50" X 30" X 11"



Return to TOP

Go to Roper Whitney Machinery Page

Roper Whitney Bar Folder Stand


WEIGHT 130 lbs
DIMENSIONS 100 x 21 x 34 in
