Manual Sheet Metal Cheek Benders

Tennsmith Manual Cheekbender

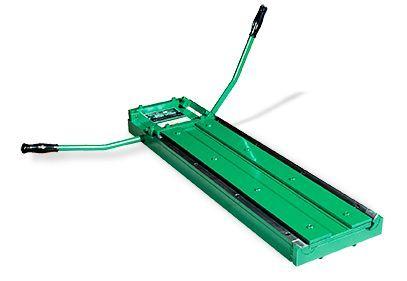

Tennsmith Model SD24-20 manual cheek bending machine - tennsmith cheekbender

Tennsmith's Model DS24-20 Manual cheek bender is a rugged tool built for increased productivity while getting the most consistent bends quickly. This model's two-way trunnion design holds the bending apron steady at the base of the bend ensuring accuracy throughout the length of the sheet.

This machine can be bench-mounted and adjusts for bends of 1/4 to 7/8 inches, 24 inches long. Tensmith's cheek bender handles mild steel to 20 guage.

Specifications for the Tennsmith model DS24-20 manual cheekbender:

  • Capacity , mild steel : 20 gauge
  • maximum bending : 24 inches
  • bend depth : 1/4 inch - 7/8 inch
  • dimensions with handles removed : 31x8-1/4x2-3/4 inches (LxWxH)
  • Shipping Weight : 80 lbs.

Tin Knocker TK No. 24 Double Sided Cheekbender

For real production! This beefy little 24 inch, two sided cheek bender is built to last. Bench mounted, this machine comes ready for service. Consistent bends are a certainty due to the two-way trunnion keeping the bending apron in position at the origin of the bend. Adjusts for 1/4" to 7/8" bends (6.35mm - 22.2mm).



Specifications:
Capacity: 20 Ga Mild Steel (1.0mm)
Bend Length: 24" (61cm)
Note: Shims are required for 28 Ga and lighter material
Dimensions: 40"x12"x10"
Weight: Approx. 96 lbs. (44kg)
