CoiL line | Duct Line | Ductformer

Ductformer's machines are Made in the USA

Ductformer offers fully automated Duct Coil Line Systems. Existing Duct Coil Lines from any manufacturer can be retrofitted or upgraded with Ductformer Add On Rollformers, Insulators, Automated L and Wrap Brakes, Tie Rod Hole punching, Shearing and Notching….

Fully Automatic Wrap Brake - 60" or 72"



Fully Automatic Wrap Brake Brochure
Click Here


For Control Udgrades Brochure
Click Here

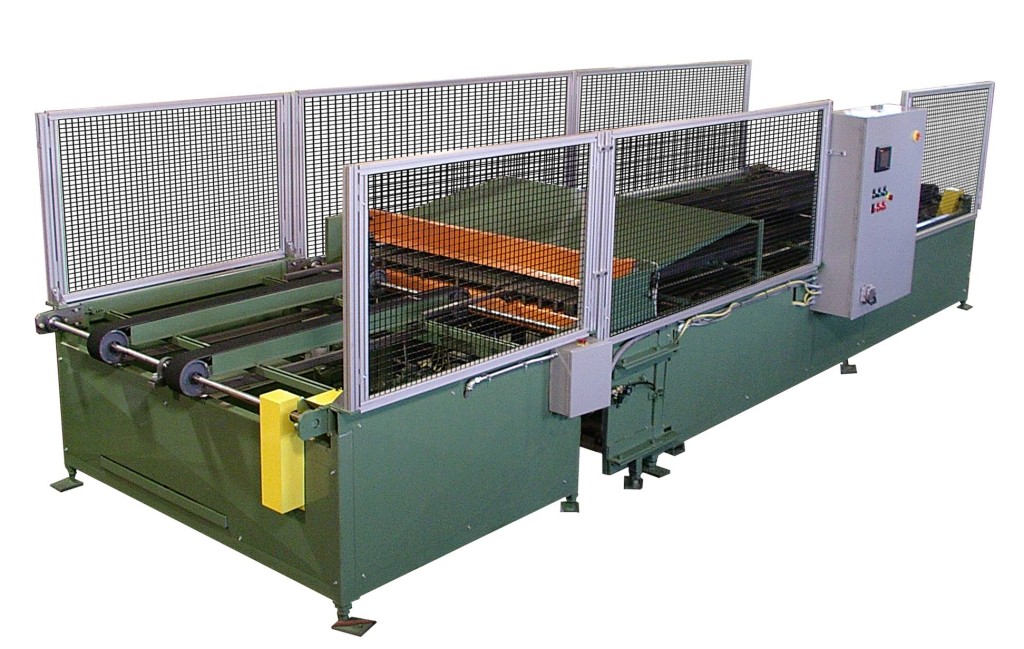

Ductformer’s AUTOBRAKE DB-60 (72) is a Fully Automatic Wrap Brake System that receives a part and bends either Full Wrap Duct or L-Sections. The DB-60 (72) can be installed in any manufacturers Duct Coil Line providing duct fabricators the opportunity to upgrade and modernize existing lines. The AUTOBRAKE DB-60 (72) incorporates the latest technology offered by name brand industrial component manufacturers including: PLC technology using Compact Flash Memory Backup, color Touch Screen Operator Interface Controls, brushless AC Vector Motion Control Drives for the part feeding, and a pressure compensated Hydraulic System.

Features:
Simple color touch screen controls
Part Data entry in seconds
Fully functional independent self contained control system integrates into any existing line
Remote or machine mounted control console options
AC Vector Motion Control Drives that are powerful and maintenance free


Specifications:
Max. Blank Length 125”
Min. Blank Length 12”
60” (DB-60) or 72” (DB-72) MAX Width
Min. L-Shape Section 4 x 8
Min. Wrap 6” x 6”
Widths 44?-56?-68” TDFC 48”-60”-72” Slip & Drive
Cycle Time – 30 Seconds Full Wrap Duct




Return To TOP

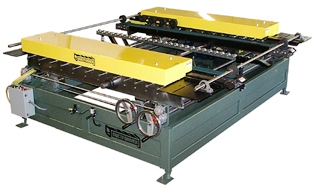

12 & 14 Station TDFC Dual Head Rollformer For Ductline

TDFC Dual Head Rollformer Brochure
Click Here

Ductformer’s Dual Head TDFC Rollformer is designed for installation in existing duct coil lines or can be used as a free standing unit. The rollformer is designed to accept and form the TDFC (F or C-Style) flange down both edges of the 18 – 26 gauge blank. Our robust yet simplistic design makes the TDFC Rollformer the work horse of any shop for many years to come.

Features
12 Forming Stations
All Welded Frame Construction
All Gear Drive
Self-Adjusting Full Gauge Range
Oil Bath Gear Reducer
Heavy Duty Spindle Shafts
Anti-Friction Roller Bearings
Universal Left/Right Hand Design


Specifications
Width Variables………….36” to 60”
Gauge Range…………..18 – 26 Ga.
Length……………………………105”
Pass line Height………………….36”
Width……………………………..119”
Motor…………………………..10 Hp
Electrical…………..3 Ph 230/460 V
Shipping Weight…………4,300 lbs.
Line Speed…………………..60 fpm



Return To TOP

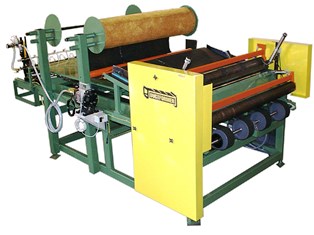

Ductformer Line-A-Duct DL-60 (or 72)

Line-A-Duct DL-60 (72) Brochure
Click Here

Ductformer Line-A-Duct DL-60 (or 72) is designed to be installed in any manufacturer’s Duct Coil Line System. The glue is first applied to the metal then the liner is cut to the exact length and pressed on to the part. A Weld Pin System (not pictured) installed after the DL-60 (or 72) would pin the liner to the metal after the insulation has been applied.

Process 48, 60, 72” coil widths
1/2” to 2” liner
TDC Slip and Drive and Raw edge
Extrudes glue adhesive
Cuts insulation material to length
Load 2 rolls of insulation

Features
Glue extrusion system eliminates overspray and minimizes maintenance
2 Insulation rolls mounting
Variable speed drives allow operator to fine tune
Common readily available and affordable “off the shelf parts” such as shear blade and pneumatic cylinders
Installs easily in any manufacturers coil line, perfect for add on or replacement of older systems
Plug into standard power and air (no special electrical shop rewiring costs compared to press brake set-up)

Specifications
Material Range……………….1/2 –2” Liner
Material Widths………………..44”-60”-72”
Length……………………………………142”
Working Height……………………..32”-40”
Width…………..(5 ft model)……………72”
Air…………………………….PSI 120 CFM 3
Voltage………………………110 & 220/440
Electrical……………….3 Phase / 50/60Hz

Return To TOP

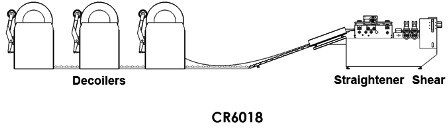

Duct Coil Line System Compact Cut-To-Length Line Model #CR6018

The compact design and heavy duty construction makes this our most popular HVAC Coil Line system. The Programmable Feed handles materials 26 to 18 gauge, 60” wide. Our wide range of Drives, Controls and applications assures you will get the dependability and accuracy you expect from a quality system.

Coil Cut to Length All of our Straighteners have one (1) set of Pinch Rolls, five (5) Straightener Rolls & a Pinch Bead Roll. The same Straightener can be configured for either an overfeed or underfeed payoff application. The Straightener features an All Gear Drive (no chain), Heavy Duty Spindles running off heavy duty Anti-Friction Roller Bearing. The Pinch Rolls are gear driven top to bottom with Pneumatic Clamping. The Pneumatic Clamping allows you to disengage the Pinch Rolls to re-align the strip when feeding in a new coil. It also eliminates tracking problems when backing the strip out of the Straightener.The upper Straightener Rolls are adjustable from a single Handwheel setting with a Micrometer readout for the carious materials to be run. The Straightener Roll settings are also a Direct Gear Drive eliminating the problem associated with other Roller Chain & Sprocket Applications.
The Bead Rolls are larger than most systems which would eliminate the Center Bead Washout found on other systems.

Ductformer’s Vee Notch & End Notch Dies are designed for both TDFC & “S” & Drive Cleat Application. The Hydraulic Press Die Units are quality Die Post & Pin construction designed for years of service & ease of maintenance. All Die Tooling is made of quality high chrome tool steel. The positioning of the Die is through Lead Screws & Handwheels with Micrometer read outs. The Hydraulic Shear is a Gib Style Cut-Off with a heavy-duty all steel construction. Shear Blades are interchangeable with four (4) cutting edges per blade. Notching
The Model CR6018 is our most popular system to bead, notch & shear Ductwork for HVAC Applications from 5’ wide coils of 18 gauge. We offer systems up to 72” wide with gauge ranges from 26 to 12 gauge capacity.

The quality compact design & heavy-duty construction of the Ductformer Cut-To-Length System assures you will get years of dependable service & accuracy unsurpassed on any HVAC Coil Line to date. All Feed Controls use the latest State-of-the-Art Technology in Programmable Micro-Processors & Feed Control Drives. This system eliminates all the mechanical shifting, clutches, brakes, etc. found in other systems.



Return To TOP
