New Machinery | Powered Beaders / Crimpers | Em-Pro EMT-7R Power Rotary Machine

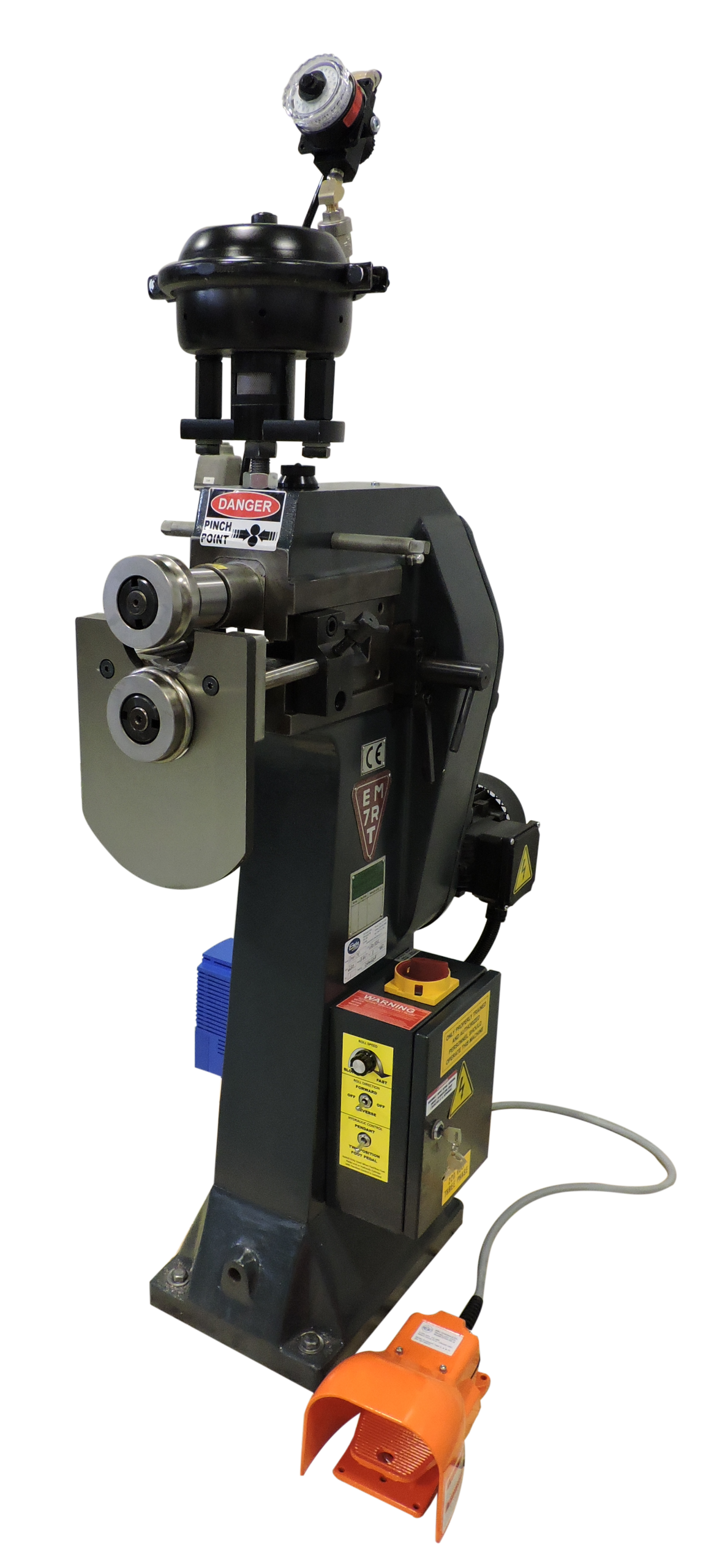

Em-Pro EMT-7R Power Rotary Machine



Manufacturer: Empire Machinery

Condition: New

Description: This Rotary/Swaging machine, according to many current owners, is the “simply the best out there”. The EMT-7R comes standard with hand-operated top shaft operation, but many customers are choosing to go with either Pneumatic or Hydraulic systems for safety and productivity. These options allow for essentially hands-free operation, making it easy on the operator and aids in reducing the possibility of injuries caused by repetitive straining movements.

(Includes ONE SET – 3/8" Single Bead Rolls)



Specifications

  • 11" Throat Depth
  • 14 Gauge Mild Steel Beading Capacity
  • Based on a standard set of rolls, top speed is 87 RPM which equates to 73.25 surface feet per minute
  • Manual Hand Operated Top Shaft Control
  • Solid Cast-Iron Frame and Large Oil Bath Gearcase
  • Most available options are plug and play and can easily be retrofitted in the field
  • Shipping Dimensions: 42" x 35" x 57" (Varies depending on options ordered)
  • Shipping Weight: Approx. 600 Lbs. (Varies depending on options ordered)
  • 1 HP Motor: 110V, 220V 1PH or 3PH, 440V
  • Weight: 400 lbs

View Machine Brochure Here

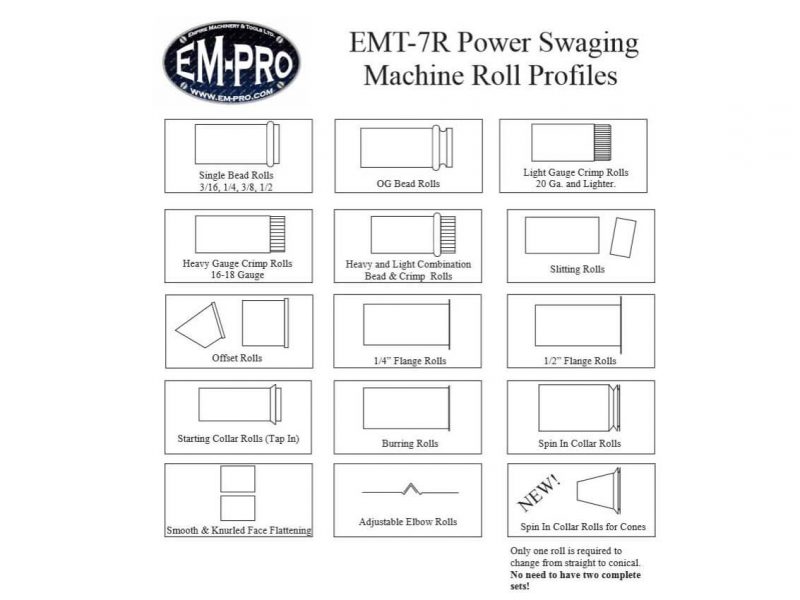

em-pro power rotary machine rolls
