Engel Roll formers | Roll forming Machines

Engel Industries Logo Rollformers

Engel manufactures roll forming machines that have the strongest and most damage resistant spindle shaft and bearing design in the ducting industry. With efficient roll designs that get the job done, without opening wheels and added devices, the heavy duty design of Engels Rollformers gives you the best money can buy.

Engel Industries Rollformers  | Rollforming Machines by Engel Industries

Click Here For Tooling Profiles for Engel Industries Rollformers...

Engel's 800 Series Roll Formers

Engel Industries, a name you know and trust, has engineered the perfect combination of precision and productivity in their 800 Series rollformers.

The Pittsburgh Lock revolutionized the HVAC Industry in the late 1930’s and is still used today for its strength and ease in assembling ductwork. The HB-800 Series Pittsburgh rollforming machines have 5 forming stations with 2 forming positions. One inboard forming position forms the Pittsburgh lock and one auxiliary or outboard forming position has the capability of forming 1 of 3 different profiles.

Versatile. Roll tooling can be changed out.

The Button Punch Snap Lock Machines form a two-piece seam that greatly simplifies ductwork assembly. The male seam is a button, the female seam is a lock and the two snap together for a flush corner. These machines are available in eight forming station machines. Not only do these locks assemble twice as fast as traditional methods, but because of the two pieces nest, they are easier to transport too.

Engel 800 Series Parts List and Drawings

Engel 800 Series Rollformer Machines Manual

Engel 800 Rollformers Older Machine Operator Manual

Engel Model 800P Rollformer



Engel Model HB 825 Rollformer

Specifications for Engel Rollforming Machine Model 800P:

  • Eight (8) station snaplock roll former for "S" and Drive mounted inboard.
  • 1 1/16" reinforced flat "S" 22-28 gauge
  • 1 1/8" Drive Cleat 22-28 Gauge
  • optional slitter attachment available (MR-SDC-II)

Return to TOP

Engel Model HB-800-P16 Rollformer

Specifications for Engel Model HB 800 P16 Pittsburgh Rollformer:

  • 1/2" pocket
  • 1/2" hammer - over
  • Eight (8) station pittsburgh lock roll former for 16 gauge mild steel.

Return to TOP

Engel Model HB-800P-18 Rollformer

Specifications for Engel Model HB 800P-18 Pitts Rollformer:

  • 3/8" pocket
  • 1/4" hammer-over
  • Eight (8) station pittsburgh lock roll former for 18 gauge mild steel.

Return to TOP

Engel Model HB - 800P- 20 Rollforming Machine

Specifications for the Engel Rollformer Model HB 800P-20:

      • 5/16"pocket
      • 1/4" hammer - over
      • Eight (8) station pittsburgh lock roll former for 20 gauge for mild steel.

      Engel 800P-20 Manual

Return to TOP

Engel Model HB- 800B-20 Rollformer

Specifications for Engel's Model HB 800B - 20 Rollformer:

      • 1/2 " Female button/snap lock 22-28 gauge with 1 1/8" notch
      • 7/16" male button lock 22-28 gauge
      • Eight (8) station snaplock roll former for 20 gauge mild steel - male and female.

Return to TOP

Engel Model HB- 800B-18 Rollformer

Specifications for Engel Rollformer HB-800-B-18:

      • 5/8" female button/snap lock 20-26 gauge with 1 3/8" notch
      • 7/16" male button lock 22-28 gauge
      • Eight (8) station snaplock roll former for 18 gauge mild steel - male and female.

Return to TOP

Engel 825 S & Drive Rollformer

The HB-825 Engel Rollformer is an eight station Slip ("S") and Drive Roll former equipped with "s" and drive rolls inboard, with extended shafts for mounting auxiliary rolls, each side outboard only.

Specifications for Engel Rollformer Model HB825 :

  • the slitter cuts metal to the correct width for either S or Drive from which once was scrap metal.
  • Comes standard with extended roll shafts for mounting auxiliary rolls, one side outboard only. “S” and Drive cleat roll set included inboard.
  • No opening rolls required.
  • Eight stations.
  • 3 motor types.
  • Inboard tooling on HB-825 for “S” and Drive.
  • Optional Outboard tooling is available on all HB-800 Series Rollformers.
  • Optional slitter turns scrap into “S” or Drive cleats.
  • 4 sets of tooling can be installed.

Engel 825 Rollformer Parts List and Drawing Machine Manual

Engel 825 Rollformer S & Drive Slitter - Belt Driven Parts Machine Manual



Return to TOP

TDF® ROLLFORMERS

      Engel's M-1640 Roll Former when equipped with TDF® tooling, produces our patented TDF® flange on straight duct work and fittings. The sixteen stations produce the highest quality flange in the industry

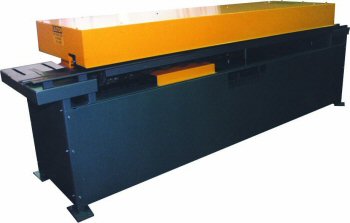

Engel Model HB-1640-WT TDF Rollformer

Engel Model HB 1640 TDF Rollformer

Specifications for Engel Model HB 1640 TDF Rollformer:

  • 16 station
  • 16 gauge rollformer

Engel HB-1640 TDF Rollformer Operation and Parts Manual



Return to TOP

Engel Model HB-1246-WT TDF Rollformer

Specifications for Engel Model HB 1246 TDF Rollformer:

  • 12 station
  • 18 gauge rollformer

Return to TOP

Click Here For Tooling Profiles

Return to the New Machinery Page
