sheet metal flanging machines

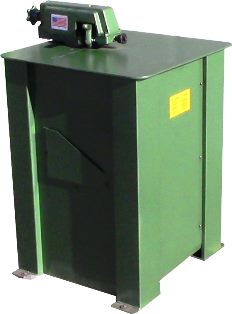

Tin Knocker TK No. 16 Power Flanger

A perfect partner for the TK 16-gauge Pittsburg Roll Former
Puts a 3/8" outside flange on straight or curved sheet metal edges
Puts a flange on material with a diameter of as little as 2"



TK No. 16 Power Flanger Specifications:
Weight: 635 lbs
Dimensions: 36 x 28 x 48 in
Capacity: 16 Gauge Aluminum, Copper, Stainless Steel and Brass
Motor: 0.75 HP, 110V, Single Phase
Speed: Approx. 18' Per Minute
UPS: UPS Capable

Return to TOP

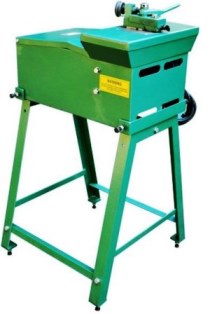

Tin Knocker TK No. 20 Power Flanger

This power flanger has the “auto-guide” feature, which automatically controls the forming of a right-angle flange. It will contour and follow any edge, straight or curved. Using the convenient table slot, the operator merely turns up a starting edge, starts the material through the rolls and lets go. This machine comes with a stand.



*Includes Stand

TK No. 20 Power Flanger Specifications:
Weight: 207 lbs
Dimensions: 25 x 25 x 41 in
Capacity: 20 Ga. and Lighter
Electrics: 115V/ 1 PH
Stand Is Included

Return to TOP

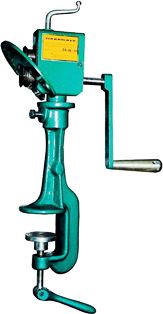

Tin Knocker TK Manual Flanger

Puts 7/32" flange on elbows and other radius fittings. Bench mounted, there is no gauge to set, and requires no special tools.



TK Manual Flanger Specifications:
Capacity: 20 Ga x 7/32"
Minimum Radius: 1 3/4"
UPS: UPS Capable
Dimensions: 26"x16"x12"
Weight: 35 lbs

Return to TOP

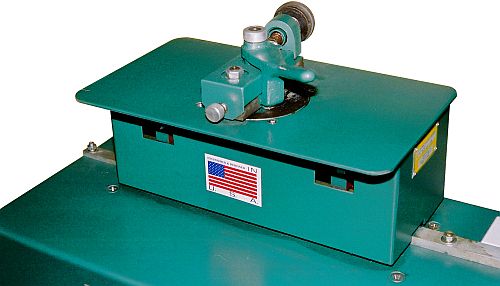

Tin Knocker 20 & 24 Ga Flanging Attachment

Add this option to turn up a 3/16 flange on straight or contoured sheet metal.





Return to TOP



Lockformer Auto - Guide Flanger 16-18

This Lockformer power flanger has the "auto-guide" feature, which automatically controls the forming of a right-angle flange. This Lockformer auto - guide flanger model 16-18 will contour and follow any edge, straight or curved. Using the convenient table slot, the operator merely turns up a starting edge, starts the material through the rolls and lets go. A calibrated dial sets the auto-guide for work with radii as small as 3-1/4". Two flange heights are available for this flanging machine - please specify 3/8" or 1/4".

Lockformer auto guide flanger 16-18

Specifications for the Lockformer Auto - Guide Flanger :

  • 16 gauge maximum , Working range 16-24
  • 2 flange heights available, 3/8" or 1/4"
  • 18 feet per minute





Return To TOP



Eagle Morlin model 1300 Handy Flanger | flanging machine

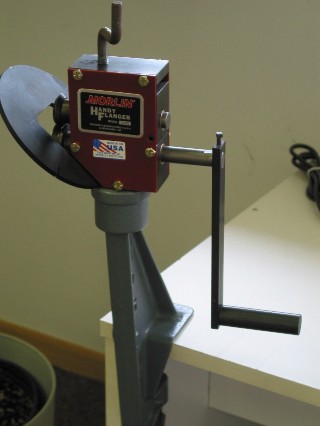

Eagle Morlin Model 1300 Handy Flanger

This Eagle Morlin Flanging machine is precision crafted for effortless operation. Super heavy duty construction to last for years. Simply clamp your Eagle Morlin Handy Flanger to any work surface and it's ready to use.

eagle morlin handy flanger

Specifications of Eagle Morlins handy flanger model 1300:

    • Capacity: 20 gauge or lighter
    • Makes a perfect 7/32 flange, even on radius fittings.
    • Weight : Approximately 27 lbs.



Return To TOP





Flagler 16 Gauge Power Flanger

This Flagler Power flanging machine is ideal for larger fitting work. This Flagler Power flanging machine is built with a heavy duty cast iron gear housing with oil bath.

Flagler 16 gauge power flanger / power flanging machine

Specifications for this Flagler 16 Gauge Power Flanger :

  • Capacity: 16-20 Ga.
  • Height of Flange: 3/8"
  • Speed: Approx. 18 feet per minute
  • Motor: 3/4 HP 115/1/60/1800 RPM .
  • Drive: Vee Belt.
  • Base: Arc Welded Steel. heavy Top Plate
  • Dimensions: 24" long, 24" wide, 38 5/8". Feed Table Height 34 5/8"
  • Shipping Weight: Approximately 185 pounds

Return To TOP



Flagler Model 20 Power Flanger

Stand alone flanger to allow shops to free up their flanging attachment on their Pittsburgh machine, complete with flange follower.



Specifications For Model 20 Power Flanger:

Capacity: 20 Ga. and Lighter
Height of Flange: 7/32”
Speed: Approx. 25 feet per minute
Motor:1/2 HP 115/1/60/1800 RPM
Drive: Chain Drive
Base: Arc Welded Steel. heavy Top Plate
Dimensions: 24" long, 24" wide, 38 5/8"
Feed Table Height 34 5/8"
Shipping Weight: Approximately 150 pounds

Return to TOP
