ACS Cutter-II-510 CNC Cutting System

The Cutter II cutting system was introduced to the market in 2006 as the latest model in the Advance Cutting Systems product line. The Cutter II is a state of the art Computer Numerically Controlled (CNC) Cutting System designed to use a plasma-cutting torch to cut out geometrical shapes and parametrically programmed HVAC (Duct Work) fittings. The fittings are programmed in the office using Profile Master PM-2000 Duct-CAM (Computer Aided Manufacturing) software; the parts are then nested on a sheet of metal to minimize material waste and are then cut out at high speed with the plasma torch.



CUTTING TABLE FEATURES & SPECIFICATIONS:

The Cutter-II is offered in 5' x 10' , 5' x 20' or 6' x 12' models.

As standard features, the Cutter -II includes the Hypertherm Ti Touch Screen Color Graphic Control, Hypertherm Powermax 1000 Plasma, Floating Head, Dell Office Computer, Dell Color Laser Printer, Down-draft Cutting Table and On-site Installation and Training.


Cutting Area : 5' X 10' or 6' x 12' single table, 5' X 20' dual table
Positioning Accuracy :
+/- .012 inch
Pierce Capacity :
(Max) 5/8" Depending on the plasma
Traverse Speed :
(Max) 1,400 Inches per Minute
Controller :
Hypertherm Ti Touch Screen Color Graphic
Drive System :
Direct Drive Servo Motors through Planetary Gear Box to Rack and Pinion
Standard Torch Height Control :
Floating head
Standard Plasma :
Hypertherm Powermax
Computer System :
Dell Desktop Computer with Color Laser Printer

Software:

PM-2000 Duct-CAM software includes SMACNA classifications and a fitting library of over 300 Rectangular Fittings, Round Fittings, Oval Fittings, Square to Round Fittings, Transitions, Multi-tap Fittings and more. PM-2000 also segments oversize fittings and produces management reports and tracking labels. PM-2000 can also be integrated with CAD-Duct (Computer Aided Drafting) and EST-Duct HVAC Estimating software offering the only “Totally Integrated Solution” to the HVAC contractor. Technical Sales International (TSI) is the supplier of CAD-Duct and EST Duct for North America.

Profile Master PM-2000 / Duct Cam Features:

Profile Master Photo
Windows XP Based
Rectangular Fittings
Round Fittings
Oval Fittings
Geometric Fittings
Automatic Nesting
Manual Nesting
Oversize Part Segmentation
Opus 4 CAD Drawing
DXF files in and out
Management Reports
Part lables

Return to TOP

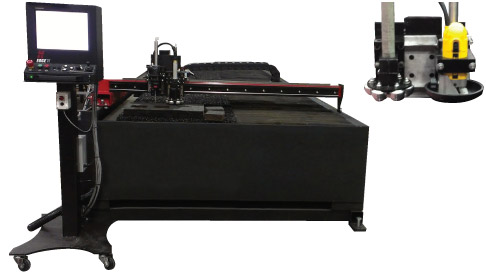

ACS Cutter Plus Combo Cutting System




Standard Features:
Cutting Area: 5' X 10' Single Table, or 5' X 20' cutting area
Twin Tools: Rotary Cutting Head & Floating Head Plasma Torch
High Speed: Traverse 3,500 inches per minute
Quick Change: Grass Support for Material
Hypertherm® EDGE Ti CNC touch screen color graphics controller: Accepts standard CNC files
Plasma Brand: Hypertherm Powermax® plasma

Optional Features:
Autodesk® Programming Software
Larger Plasma Units
6' cutting width
Alternate controllers



Return to TOP

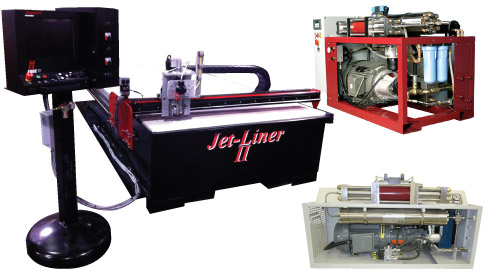

ACS Jet-Liner II (Non-Abrasive)






Specifications
:

Standard Features:
Cutting Area: 5' x 10' or 5' x 20'
Hypertherm® AccuStream™ 15 HP, 60,000 PSI Pump
Waterjet bricks to support the material
Touch Screen Color Graphic Control that accepts standard CNC files
Cut Insulation, Duct Board, Plastic, Rubber and More!
Onsite Installation and Training

Optional Features:
Autodesk® offline Programming Software
Hypertherm® AccuStream&trade 30, 50HP - 60,000 PSI Pump



Return to TOP

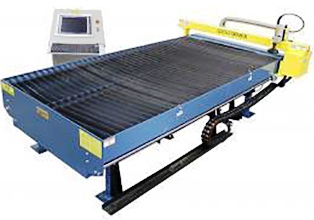

The Lockformer VulcanPlus Plasma Table

Vulcan is . . .

Simply the best worldwide. The Plus is the benchmark in plasma cutting systems – now featuring the new “Flex-Ability” technology.

A superior product brand because it has earned the reputation for unrivaled quality, performance and value. Renowned for its design and CAD to CAM solution, the VulcanPlus outperforms other HVAC Plasma cutting systems..state-of-the-art in every detail and component.

Through the years, Lockformer’s steady stream of innovations provide the latest trends in HVAC sheet metal cutting and these influences significantly set us apart.

Software
Vulcan Windows 10 HVAC

Computer System
Office PC with 19" Monitor & Printer

Machine Control
Lockformer B&R Indutrtial Grade cutting table controller with 15" color system graphic industrial touch screen
Digital Drive devices
Manual Speed increase/decrease override
Kerf compensation
Auto home sense set 0/0 automatically
Automatic corner slow down
Brushless AC servo motors with resolver feedback
Remote safety stop swithces and current limiting drives for safety

Cutting Unit
Standard: PowerMax 45
Optional: PowerMax 65

Cutting Area
5’x10' Standard – 5’x20', 6’x20' & 6’x20' Optional
Hypertherm Powermax 45 Plasma Unit

CAPACITY
Cutting Capacity
PowerMax 45: 3/8" Mild Steel
PowerMax 65: 1/2" Mild Steel

Table Capacity
1,000 pounds (5’x10' model)

SPEED
Positioning Speed
3,000 IPM Max.

Options
Upgrade to Powermax 65 available
Vulcan HVAC Software, office computer and (2) inkjet printers available
VulcanPlus Startup Assistance & Training – 3 Day Package available. Additional
days for on-site assistance or training time are available at Seller’s usual and
customary daily service rates plus travel & living expenses.

SPEED
Positioning Speed
3,000 IPM Max.

Cutting Speed
Based on Material

MACHINE WEIGHT
2,700 pounds

Return to TOP
