roper whitney Sheet Metal Hand Brakes

Connecticut - Roper Whitney Sheet Metal Brakes

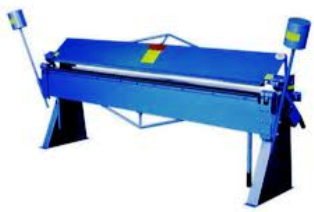

Roper Whitney Connecticut Model 816 Brake

Specifications of the Roper Whitney Connecticut Model 816 Sheet Metal Bending Brake:

  • Length of bed 97"
  • Capacity on mild steel, 1" flange , With bending bar and angle in place 16 ga. , with bending angle removed 20 ga. , with bending bar and angle removed 23 ga.
  • Minimum reverse bend(bar and angle removed) 1/4"
  • Maximum lift of beam 1 5/8"
  • Front to rear adjustment of beam 1 1/8"

Roper Whitney Connecticut Model 1016 Brake

  • Length of bed 121"
  • Capacity on mild steel, 1" flange , With bending bar and angle in place 16 ga. , with bending angle removed 20 ga. , with bending bar and angle removed 23 ga.
  • Minimum reverse bend(bar and angle removed) 1/4"
  • Maximum lift of beam 2 1/4"
  • Front to rear adjustment of beam 1 3/8"

Roper Whitney Connecticut Model 1018 Brake

Specifications of the Roper Whitney Connecticut Model Number 1018 Sheet Metal Bending Brake:

  • Length of bed 121"
  • Capacity on mild steel, 1" flange , With bending bar and angle in place 18 ga. , with bending angle removed 22 ga. , with bending bar and angle removed 25 ga.
  • Minimum reverse bend(bar and angle removed) 1/4"
  • Maximum lift of beam 1 5/8"
  • Front to rear adjustment of beam 1 1/8"

Roper Whitney Connecticut Model U414 Brake

Specifications of the Roper Whitney Connecticut U414 sheet metal Finger Brake:

  • Length of bed 48"
  • Capacity on mild steel, 1" flange , With bending bar and angle in place 14 ga. , with bending angle removed 18 ga. , with bending bar and angle removed 21 ga.
  • Minimum reverse bend(bar and angle removed) 1/4"
  • Maximum lift of beam 1 5/8"
  • Finger widths 3",4",5"
  • Maximum depth of box 6"
  • Front to rear adjustment of beam 1 1/8"
  • Bench size (optional) 56" long, 18" wide, 26" high

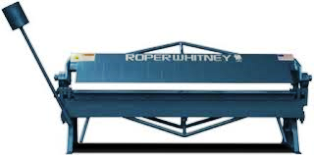

Roper Whitney Connecticut Model U416 Brake

Specifications of the Roper Whitney Connecticut Model U416 sheet metal Finger Brake:

  • Length of bed 48 1/4"
  • Capacity on mild steel, 1" flange , With bending bar and angle in place 16 ga. , with bending angle removed 20 ga. , with bending bar and angle removed 23 ga.
  • Minimum reverse bend(bar and angle removed) 1/4"
  • Maximum lift of beam 1 1/4"
  • Finger widths 2",3",4"
  • Maximum depth of box 4"
  • Front to rear adjustment of beam 5/8"
  • Bench size (optional) 56" long, 18" wide, 26" high

Roper Whitney Connecticut Model U218 Brake

Specifications of the Roper Whitney Connecticut Model U218 sheet metal Box and Pan Brake:

  • Length of bed 24 1/4"
  • Capacity on mild steel, 3/8" flange , full length 18 ga.
  • Minimum reverse bend 5/16"
  • Maximum lift of beam 7/8"
  • Finger widths 2", 3", 4"
  • Maximum depth of box 3"

Roper Whitney Connecticut Model U422 Finger Brake

Specifications of the Roper Whitney Connecticut U422 sheet metal Box and Pan (finger) Brake:

  • Length of bed 48 1/4"
  • Capacity on mild steel, 3/8" flange , full length 22 ga.
  • Minimum reverse bend 5/16"
  • Maximum lift of beam 7/8"
  • Finger widths 2", 3", 4"
  • Maximum depth of box 3"
