Roper whitney Slip Rolls | Sheet Metal Roll bending machine

Roper Whitney Manually Operated Sheet Metal Rolls

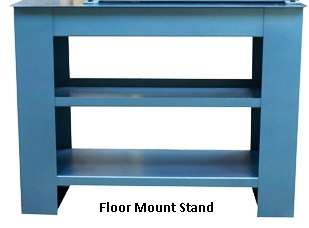

Work rolls of precision turned and ground high carbon steel. 2", 2 1/2", and 3" diameter rolls with wiring grooves and fuly enclosed gear housings. 2" and 2 1/2" Diamater have two driven rolls with 3rd roll drive optional: 3" rolls have three driven rolls. Two handles provided for 2 1/2" and 3" hand rolling machines sizes only. The upper roll lifts for convenient removal of workpiece on these Roper Whitney manually operated sheet metal rolls. These rolls can be bench mounted, with welded steel cabinet stand is available. The rear rolls of no. 416 and no. 418 are provided with three full length longitudinal grooves.

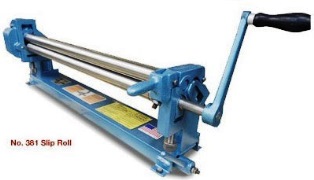

Roper Whitney Model No. 381 Manual Rolls

Specifications:

  • Capacity mild steel - 22 Gauge
  • maximum sheet length - 36"
  • roll diameter - 2 inches
  • gearing ratio - direct drive
  • wiring grooves (inches) - 3/16, 1/4, 5/16

Roper Whitney Model No. 0381 Manual Rolls

Specifications:

  • Capacity mild steel - 24 Gauge
  • maximum sheet length - 42"
  • roll diameter - 2 inches
  • gearing ratio - direct drive
  • wiring grooves (inches) - 3/16, 1/4, 5/16

Roper Whitney Model No. 383 Manual Rolls

Specifications:

    • Capacity mild steel - 20 Gauge
    • maximum sheet length - 24"
    • roll diameter - 2 inches
    • gearing ratio - direct drive
    • wiring grooves (inches) - 3/16, 1/4, 5/16

Roper Whitney Model No. 390 Manual Rolls

Specifications:

  • Capacity mild steel - 16-18 Gauge
  • maximum sheet length - 36"
  • roll diameter - 2 1/2 inches
  • gearing ratio - 2 : 4 : 1
  • wiring grooves (inches) - 1/4 , 9/32 , 5/16 , 3/8

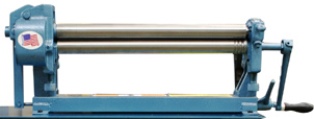

Roper Whitney Model No. 392 Manual Rolls

Specifications:

    • Capacity mild steel - 20 - 22 Gauge
    • maximum sheet length - 48"
    • roll diameter - 2 1/2 inches
    • gearing ratio - 2 : 4 : 1
    • wiring grooves (inches) - 1/4, 9/32, 5/16, 3/8

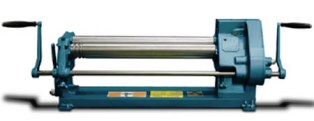

Roper Whitney Model No. 416 Manual Rolls

    These hand rolls manufactured by Roper Whitney Model No. 416 Work Rolls of precision turned and ground high carbon steel. 2", 2 1/2", and 3" diameter rolls with wiring grooves and fully enclosed gear housings. 2" & 2 1/2" dia. have two driven rolls with 3rd roll drive optional; 3" has three driven rolls. Two handles provided for 2 1/2" & 3" sizes only. Upper roll lifts for convenient removal of workpiece. Bench mounted, with welded steel cabinet stand available for the Roper Whitney Model 416 Hand Rolls. The rear rolls of Roper Whitney's No. 416 and No. 418 Hand Rolls are provided with three full length longitudinal grooves.

    Specifications:

      • Capacity mild steel - 16 Gauge
      • maximum sheet length - 36"
      • roll diameter - 3 inches
      • gearing ratio - 4 : 1
      • wiring grooves (inches) - 3/8, 1/2, 5/8

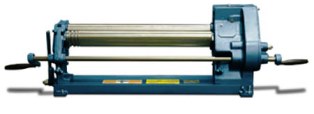

Roper Whitney Model No. 418 Manual Rolls

    Specifications:

    • Capacity mild steel - 18 Gauge
    • maximum sheet length - 48"
    • roll diameter - 3 inches
    • gearing ratio - 4 : 1
    • wiring grooves (inches) - 3/8 , 1/2 , 5/8

    Models Of Roper Whitney's Roll Bending Machines Available Are:

        • Roper Whitney Model 416 Hand Rolls
        • Roper Whitney Model 418 Hand Rolls
        • Roper Whitney Model 392 Hand Rolls
        • Roper Whitney model 390 hand rolls
        • Roper Whitney Model 383 Hand Rolls
        • Roper Whitney Model 0381 Hand Rolls
        • Roper Whitney Model 381 Hand Rolls

Contact Us About Roper Whitneys Hand Rolls.
