CINCINNATI Precision Machinery - sheet metal fabrication machinery specialists...we are here to serve you for all of your sheet metal fabricating machinery Here at CPM we represent machinery for all of your sheet metal fabrication needs - everything from hand tools to lasers, coilines to brakes, notchers to ironworkers and much more. Please give us a call or glance through CINCINNATI Precision Machinery 's site for all your sheet metal fabrication needs.









youtube logo

Used Machinery

ALL Used Machinery

Used Air Compressors

Used Autobrakes / Sheet Metal Folders


Used Bar Folders

Used Sheet Metal Brakes

Used Cheek Benders

Used Cleat Benders / Cleat Folders

Used Clincher / Fasteners

Used Coil Lines

Used Crimping / Beading / Rotary Machine

Used Drill Press

Used Duct Beading Machine

Used Duct Insulation Liner Cutters

Used Flangers / Flanging Machines

Used Gorelockers / Elbow Machines

Used Grinders

Used HVAC Accessories

Used HVAC Duct Insulation Pin Spotters

Used Ironworkers

Used Laser Cutting Machines

Used Mechanical Piping Equipment

Used Notching Machines

Used Plasma Cutting Machines

Used Press Brakes

Used Punching Machines

Used Sheet Metal Rolls

Used Roll Formers

Used Saws

Used Sheet Metal Shears

Used Sheet Metal Slitters

Used Spiral Machines

Used Welders





Manual Rotary & Combination Sheet Metal Machines

Eagle Morlin sheet metal machinery

Eagle Morlin Manufacturing is your industry leader for HVAC tools and machinery. We have been manufacturing and selling tools and machinery since 1983 and have built our reputation on integrity, quality workmanship, customer satisfaction and product performance. Our line of HVAC tools and machines include two types of Pittsburgh Lock Hammers, Pittsburgh Machines, Power Flanging Attachment, Hand Easy Edger, Sheet Metal Brakes, Drive Cleat Shears, Cheek Benders, 7 IN 1 Tool (formerly Bohn-Combi), Stretcher / Shrinker, Slip Rolls, Rotary Machine and Foot Squaring Shears.

Eagle Morlin Rotary Machine - Model R22

The Model R22 rotary machine, with the interchangeable rolls, is a versatile forming tool for the manual performance of numerous sheet metal operations. This tool features a solid cast, enclosed frame and smooth meshing machine gears. Material can be fed through the rolls in either direction by selecting the proper arbor. The forming pressure of the rolls is controlled by the crank on top of the frame. This unit comes in standard rolls A, C, D, E and F listed on the chart, a hand crank, spanner and bench stand.

  • Maximum capacity, mild steel -- 22 gauge (0.75 mm)
  • Throat -- 7 in. (177 mm)
  • Distance, shaft center to center -- 2 in. (50 mm)
  • Shipping weight -- 67 lbs. (30 kg)
  • Export crate -- 2.14 cu. ft. (0.06 cu. m)

Contact Us About This Eagle Morlin Rotary Machine

Tennsmith's rotary machine, with interchangeable rolls, is a versatile forming tool for the manual performance of numerous sheet and metal operations. It features solid cast, enclosed frame and smooth meshing machine gears. Material can be fed through the rolls in either direction by selecting the proper arbor. The forming pressure of the rolls is controlled by the crank on top of the frame.

Tennsmith Model R22 Rotary Machine

Tennsmith Model R24 Rotary Machine

Tennsmith Sturdy solid cast, enclosed frame with smooth meshing machine gears. Material can be fed through the rolls in either direction by selecting the proper arbor. Top crank controls forming roll pressure.

22 ga. capacity, 7" throat depth, 2" distance between shaft centers.

Includes 6 different rolls (for forming various sheet metal operations) hand crank, spanner & bench stand.

Specifications For Tennsmith Model R22 Rotary Machine:

  • capacity , mild steel: 22 gauge
  • throat: 7"
  • Distance, Shaft center to center: 2"
  • shipping weight: 67 lbs

Rolls Available For The Tennsmith Model R22 Rotary Machine:

  • turning
  • burring
  • wiring
  • crimping
  • ogee beading
  • single beading

Tennsmith Model R24 Rotary Machine

Tennsmith model R24 rotary machine

Tennsmith Solid cast machine provides simultaneous crimping and beading on 24 ga. and lighter materials. Included spacer collars allow for crimp-only operations.

24 ga. capacity, 1-3/4" distance between shaft centers.

Includes ogee bead & crimping rolls & spacer collars, hand crank, spanner & bench stand.

Specifications For Tennsmith Model R24 Rotary Machine:

    • capacity, mild steel: 22 gauge
    • throat: n/A
    • Distance, Shaft center to center: 1 3/4"
    • shipping weight: 35 lbs



Contact Us About This Eagle Morlin Rotary Machine

The forming machines included in this section offer a broad variety of shapes and capabilities in forming sheet metal for a combination of uses: beading, crimping, setting down, double seaming, turning, buring, wiring, elbow edging, flanging, and flattening. All are precise in the job they do and are readily adaptable to job requirements. The roll chart is indicative of their flexibility. Most are portable and may be set up at the job with a clamp-on base.

Roper Whitney Pexto No. 0617 Beading Machine

The No. 0617 beading machine is a deep throat 13" capacity design that is shipped with standard spacing collars and gauges for all operations except flanging. Rolls are ordered
separately. It will form metal up to 18 gauge.

Specifications:

  • Model: 0617
  • Capacity: 18 Gauge Mild Steel
  • Throat: 13"
  • Weight: 240 lbs.

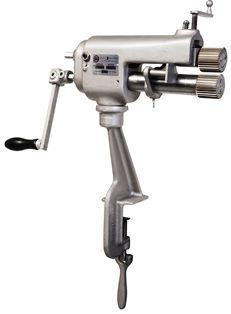

Roper Whitney Pexto Combination Rotary Machine No. 622 Series

The Roper Whitney Beader and Crimping Machine Model No. 622 Series is equipped with the addition of a 7" deep throat for additional forming capabilities, such as furnace collar edging. The Roper Whitney Model No. 622 Combination Rotary machine includes a set of rolls (A, C, D, E & F) and gauges or may be ordered without rolls as Roper Whitney Model No. 622LR*(beading / crimping machine). A number of rolls may be ordered separately through Roper Whitney.

Roper Whitney Crimper Beader No. 622 Series machines include No. 975 clamp-on offset base.

Rolls Included in the R.W. Beader and Crimping Machine:

    • Turning
    • Burring
    • wiring
    • crimping
    • ogee bead

For roll descriptions click here

Contact Us About This Roper Whitney Rotary Machine
