Tennsmith Model HBT72-16 Brake

Tennsmith Model HBT72-16 brake good for bending tdc or tdf !

Tennsmith's new HBT72-16 is designed to provide forming capabilities for complex parts . This machine is truly a universal hand brake which allows for the removal of both upper and lower segments of fingers. Complex parts , such as, traverse duct and down flanged parts, as well as architetural sheet metal and signage applications, can easily be formed using this machine.

The Tennsmith HBT72-16 is built with the same high-quality features and standards that Tennsmith brakes are recognized for throughout the industry.

Specifications For Tennsmith Model HBT72-16

    • Capacity , mild steel : 16 gauge
    • capacity, stainless steel : 20 gauge
    • bending length : 72 inches
    • maximum lift of beam : 1 -1/2 inches
    • front to rear beam adjustment : 1 inch
    • maximum depth of box : 4 inches
    • minimum reverse bend ( angle and insert removed) : 1/4 inch
    • top segment finger widths : 2,3, and 4 inch
    • Lower segment tooling width : 2,3,3.5,3.5,4,4,6,6,8,8,12,12
    • Bending beam tooling segments : 2,3,3.5,3.5,4,4,6,6,8,8,12,12
    • Maximum transverse bend (through tooling centers ) : 2 inches
    • maximum transverse bend (at either end of the machine) : 3 inches



Return to TOP

Tennsmith Model HB97-16 Brake



Tennsmith's heavy-duty hand brakes are designed and built for long service and accurate bending. Welded steel plate construction and heavy truss rods and braces provide strength and durability.

With much more substantial steel side plates than other domestically made units, these brakes have the rigidity required for upper beam adjustment without the use of wrenches.

Equipped with thrust bearings, the upper leaf adjustment screws permit quick, accurate alignment for different material thicknesses or radii.

Other adjustment features include:

Leveling screws and lock nuts on the pedestals
Jack screws and tensioner bolts on the apron
Truss rods on the apron, base and upper beam
Fully adjustable counter balances to facilitate the bending process
Replaceable nose bar and apron inserts

Removable apron angle and insert permit 1/4" reverse bends in lighter material. Bored in line to ensure perfect alignment, the pivot points are fitted with oil-impregnated bearings. The hinge pins are high-tensile alloy steel.

Ductile steel clamps handles, heavy yokes, grease fittings, and an apron stop rod complement the many other fine features of these heavy-duty brakes.

The HB97-16 Features:

  • A mild steel capacity of 16 gauge (1.6mm)
  • A bending length of 97 in (2464mm)
  • A maximum beam-lift of 1 7/8" (47mm)
  • A front-to-rear beam adjustment of 1/1" (6mm)
  • A minimum reverse bend of 1/4" (6mm)
  • A minimum flange in capacity material of 1" (25mm)
  • Shipping dimensions of 140x52x60 in (3556x1321x1524mm)
  • A shipping weight of 1675lb (760kg)

**Also Available in 12 & 18 Gauge

Return to TOP

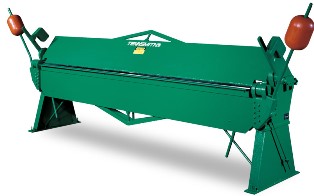

Tennsmith Model HB121-16 Brake

Tennsmith's heavy-duty hand brakes are designed and built for long service and accurate bending. Welded steel plate construction and heavy truss rods and braces provide strength and durability.

With much more substantial steel side plates than other domestically made units, these brakes have the rigidity required for upper beam adjustment without the use of wrenches.

Equipped with thrust bearings, the upper leaf adjustment screws permit quick, accurate alignment for different material thicknesses or radii.

Other adjustment features include:

Leveling screws and lock nuts on the pedestals
Jack screws and tensioner bolts on the apron
Truss rods on the apron, base and upper beam
Fully adjustable counter balances to facilitate the bending process
Replaceable nose bar and apron inserts

Removable apron angle and insert permit 1/4" reverse bends in lighter material. Bored in line to ensure perfect alignment, the pivot points are fitted with oil-impregnated bearings. The hinge pins are high-tensile alloy steel.

Ductile steel clamps handles, heavy yokes, grease fittings, and an apron stop rod complement the many other fine features of these heavy-duty brakes.

The HB121-16 Features:

  • A mild steel capacity of 18 gauge (1.25mm)
  • A bending length of 121 in (3073mm)
  • A maximum beam-lift of 2 1/4" (47mm)
  • A front-to-rear beam adjustment of 1/2" (13mm)
  • A minimum reverse bend of 1/4" (6mm)
  • A minimum flange in capacity material of 1" (25mm)
  • Shipping dimensions of 161x53x60in (4039x1321x1524mm)
  • A shipping weight of 2875lb (1304kg)

**Also Available in 14 & 18 Gauge

Return to TOP
