Tennsmith Universal Floor Model Hand Brakes

Tennsmith's EBT Series is a versatile machine that allows for the removal and repositioning of both the upper and lower segments for forming complex parts.

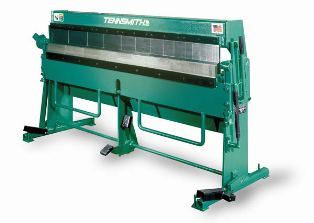

Tennsmith Model EBT60-16 Universal Floor Model Hand Brake

Tennsmith's EBT Series is a versatile machine that allows for the removal and repositioning of both the upper and lower segments for forming complex parts. In addition, the EBT incorporates gas spring cylinders in lieu of traditional counterweights to assist in the bending process and the raising and lowering of the upper beam. The brake also features goat’s-foot-style upper beam tooling.

Common applications include:
•Architectural and ornamental metalforming
•Signage
•Aircraft panel fabrication


Specifications:


Capacity, Mild Steel…………………..……………………..16 gauge
Capacity, Stainless Steel………………………………….20 gauge
Bending Length……………………………………….…….…60-1/4”
Maximum Lift of Beam……………………………………….4”
Front to rear adjustment………………………………….1”
Maximum Box Depth………………………………..………..4”
Minimum Reverse Bend……………………………..………5/8”
Minimum Flange in capacity material…………………1”
Segment Tooling width..…………………………………….20,12,8,6,4,1.5,1
Dimensions, counterweights in place ……………….72”L x 45-1/2”W x 31-1/2”H
Weight………………………….……………………………….......1150 lbs.
