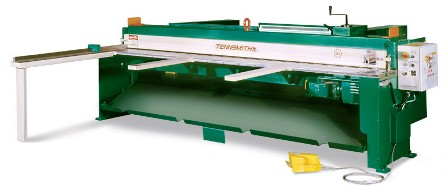

Tennsmith MSE Series Mechanical Shears | Sheet Metal Shears

TENNSMITH'S MSE Series mechanical shears utilize a low maintenance design, coupled with an array of standard features for an attractive combination of high value and solid performance.

The MSE Series come standard with four-edge, high carbon, high chrome blades, a self-leveling hold down bar with neoprene insert, single, continuous and jog stroke cycles, motor reverse switch, precision-machined table, dual inch/metric inlaid bed scales and non-metallic gibs. The MSE Series also incorporates the unique front operated 2x-F back gauge system. This system allows the operator to move the backstop from 0 to 30 inches in approximately 2 seconds with only two rotations of the handle. Capacities of the shears are 16-gauge mild steel, 22-gauge stainless with 73 or 121 cutting lengths and speeds of 40 strokes per minute.

The MSE Series is available in the following configurations: MSE616 (BASE), MSE1016-R, MSE1016-F AND MSE1016-FC.

The MSE616-R / MSE1016-R shear is standard in a “Performance Package-R” configuration. The Performance Package includes: a five foot squaring arm, a pair of front support arms, rear material return air operated sheet support system, and parts counter.

The MSE616-F / MSE1016-F shear is standard in a “Performance Package-F” configuration. The Performance Package includes: a four foot squaring arm, a pair of front support arms, front material return air operated sheet support system, parts counter.

The MSE1016-FC includes all the features of the MSE1016-F, but also includes a front return material cart as standard. The material cart allows for sheared materials to be moved from the shear to other areas in the shop without restacking. Numerous Options are available for the MSE Series.

OPTIONS:
Squaring Arm, Five Foot with Dual Inlaid Inch/Metric Scale
Air Operated Sheet Support System
Front Support Arms, Pair
Protractor
Stroke COunter

MSE Series Shears Specifications:

Maximum shearing capacity:
Mild Steel: 16 gauge/1.6 mm
Stainless Steel: 20 gauge/1.0 mm

Maximum cutting length:
MSE616: 73 in./1854 mm
MSE1016: 121 in./3073 mm

Back gauge range:
MSE616: 30 in./762 mm
MSE1016: 30 in./762 mm

Strokes per minute, full length: 40 SPM

Motor: 230/460v, 3-phase, 60Hz 3 hp

Number of holddowns: Solid BAR

Floor space, gauges in position:
MSE616: 92 x 69 x 50 in. ( 2337 x 1753 x 1270 mm)
MSE1016: 140 x 69 x 50 in. ( 3556 x 1753 x 1270 mm)

Shipping weight:
MSE616: 2,300 lbs./1046 kg
MSE1016: 4,150 lbs./1886 kg

The MSE Performance Package includes:
Five-foot squaring arm.
Pair of front support arms.
Air-operated sheet support system, F or R.
(“F” is a Front Return Material System via material tray located under the shear table. “R” is a Rear Return Material System.)
