Tennsmith Shears | Foot, Hand, Hydraulic & Air Sheet Metal Shears

Squaring Shear | Hydraulic Shear | Air Shear | Manual / Hand Shear



Tennsmith Models 36 & 52 Foot Squaring Shear



TENNSMITH’S squaring shears offer precision shearing and rugged construction at an affordable price. The shear frame, bed and cutter head assemblies are constructed of heavy-duty cast iron. The shear bed is machined and then surface ground to precision tolerances to ensure an accurate working surface.

These shears feature triaction, high-carbon/highchromium (HCHC) steel blades. Both the upper and lower blades have a 2-degree edge relief and the lower blade has an additional 1-degree face relief for maximum material penetration with minimum effort. Triaction blades help prevent material movement while shearing, prolonging blade life.

TENNSMITH shears have the most complete adjustment features of any sheet metal shear on the market. The lower shear blade is bedadjusting and the upper blade is adjustable by means of a truss bar on the cutter head. The spring-activated holddown feet clamp the work piece securely in place and are easily adjustable to compensate holding pressure for light or heavy gauge material. There is ample clearance between the holddown feet and shear blades to allow good operator vision for line-of-sight cutting. The standard, double-locking back gauge, which features embossed scales and vernier wheels for fine adjustment, gives highly accurate readings.

52" wide 16ga capacity floor model foot-squaring shear complete with hi-carbon hi-chrome steel blades, double locking back gauge with embossed scales and vernier wheels for fine adjustment.

Foot-Squaring Shears
Model 36
Model 52
Maximum shearing capacity, mild steel 16 gauge/1.6 mm 16 gauge/1.6 mm
Maximum shearing capacity, stainless steel 20 gauge/1.0 mm 20 gauge/1.0 mm
Maximum cutting length 37 in./940 mm 52-1/4 in./1327 mm
Back gauge range 30 in./762 mm 30 in./762 mm
Front gauge range 37 in./940 mm 37 in./940 mm
Floor space, gauges in position 45 x 80 in.
1143 x 2032 mm		 60 x 80 in.
1524 x 2032 mm
Dimensions, less gauges, LxWxH 46-1/2 x 27 x 42 in.
1181 x 686 x 1067 mm		 61 x 36 x 42 in.
1550 x 915 x 1067 mm
Shipping weight 700 Ibs./317.5 kg 950 Ibs./431 kg

Features:
• Shear frame, bed and cutter head constructed of heavy-duty cast iron.
• High chromium steel cutting blades.
• Upper and lower shear blades with unique adjustment features.
• Double-locking back gauge with embossed scales and vernier wheels for fine adjustment standard.
• 3-Year warranty by Tennsmith.

*Standard equipment includes: a back gauge, front extension arms with stop, bevel gauge and graduated side scales.
*Additional option: Squaring arm.

Return to TOP



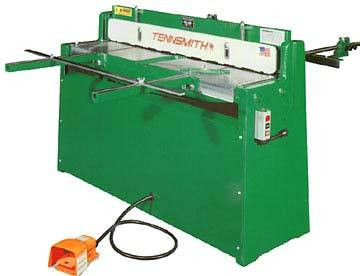

Tennsmith 52H Hydraulic Shear

The model 52H cycles at 45 strokes a minute, thanks to its first class hydraulic system. The hydraulic unit is of a low maintenance design featuring a solenoid actuated valve, 3-hp electric motor, self-contained pump in tank with pressure gauge, check valve and industrial quality cylinders. The motor is protected by a magnetic starter.

52" wide 16ga capacity floor model hydraulic squaring shear complete with hi-carbon hi-chrome steel blades, double locking back gauge with embossed scales and vernier wheels for fine adjustment

Specifications:

Max. Shearing Capacity Mild Steel--------------16 GA.
Max. Shearing Capacity Stainless Steel--------20 GA.
Max. Cutting Length-------------------------------52-1/4"
Back Gauge Range---------------------------------30"
Front Gauge Range--------------------------------37"
Strokes Per Minute, Full Length-----------------60
Maxi. Operating Pressure------------------------60 PSI
Motor-------------------------------------------------3 HP, 230/460V 3 PH
Shipping Weight:----------------------------------1,500 lbs.

Features

Shear frame, bed and cutter head constructed of heavy-duty cast iron.
High chromium steel cutting blades.
Upper and lower shear blades with unique adjustment features.
Double-locking back gauge with embossed scales and vernier wheels for fine adjustment standard.
Powerfull hydraulic system allows up to 60 strokes per minute.
10-gallon hydraulic tank with 3HP motor, temperature indicator, pressure valve and industrial quality hydraulic cylinders.
Foot operated switch for hands-free control of shearing cycle.
3-Year warranty by Tennsmith.



Return to TOP



Tennsmith Models 36A & 52A Air Shear

A foot-operated air valve control, pressure regulator, air gauge, oiler/condenser cups and neoprene, padded holddown feet are standard features. We recommend a maximum air supply of 75 psi for operating these shears at rated capacity. Where air supply pressures exceed 75 psi, an in-line regulator is helpful to provide pressure control.

Other electrical safety features include a low voltage on/off switch; low voltage, shrouded, electric foot switch; step-down transformer with low voltage circuit fuse; fully enclosed electrical box; and insulated reinforced conduit for all wiring. Models 36A and 52A are ideal ways to enhance shearing productivity with minimal investment.

All shears are standard, equipped with highcarbon/high-chromium (HCHC) blades.

Standard equipment includes back gauge, front extension arms with stop, bevel gauge, graduated side gauges, foot control and neoprene padded holddown feet.

The model 52A utilizes heavy-duty, tie rod-type pneumatic cylinders, which provide up to 40 strokes per minute in capacity materials. A foot-operated air valve control, pressure regulator, Air gauge, oiler/condenser cups and neoprene, padded holddown feet are standard features.

Tennsmith recommends a maximum air supply of 75 psi for operating this shear at rated Capacity. When air supply pressures exceed 75 psi, an in-line regulator is helpful to provide
Pressure control. Equipped with high-carbon/high-chromium (HCHC) blades.

Power Shears Model 36A Model 52A
Maximum shearing capacity, mild steel 16 gauge/1.6 mm 16 gauge/1.6 mm
Maximum shearing capacity, stainless steel 20 gauge/1.0 mm 20 gauge/1.0 mm
Maximum cutting length 37 in./940 mm 52-1/4 in./1327 mm
Back gauge range 30 in./762 mm 30 in./762 mm
Front gauge range 37 in./940 mm 37 in./940 mm
Floor space, gauges in position 45 x 80 in.
1143 x 2032 mm		 60 x 80 in.
1524 x 2032 mm
Dimensions, less gauges, LxWxH 46-1/4 x 24 x 42 in.
1181 x 686 x 1067 mm		 61 x 25 x 42 in.
1550 x 915 x 1067 mm
Strokes per minute, full length 40 40/45
Maximum operating pressure 75 psi/5.1 atmos. 75 psi/1450 psi
5.1 atmos./98.6 atmos.
Air consumption per stroke 1.1 cu. ft./0.031 cu. m. 1.33 cu. ft. / n/a
0.038 cu. m. / n/a
Motor–230/460v, 3-phase, 60Hz, 1745 RPM n/a n/a / 3 hp
Shipping weight 800 Ibs./363 kg 1085 Ibs./1300 lbs. 492 kg/590 kgs

Standard Equipment

Back Gauge
F front Extension Arms with Stop
Bevel Gauge
Graduated Side Gauges
Foot Control
Neoprene Padded Holddown Feet

*Available options: Squaring arm and one-shot lubricating system.



Return to TOP



Tennsmith SK1020 Manual/Hand Shear

The SK Series is the latest addition to Tennsmith’s broad line of shearing machines.
The SK is built with the quality and high exacting standards. This model is ideal for customers
interested in 10-foot shearing capacity with the affordability of manual operation.

The SK Shear is equipped with a standard 24-inch rear operated 2x-R backgauge system,
4-edge High Carbon/High Chrome blades and precision bearings.

Specifications:
Maximum Shearing Capacity, Mild Steel…………………………………….20 Gauge
Maximum Shearing Capacity, Stainless Steel……………………………24 Gauge
Maximum Cutting Length…………………………………………………………..121”
Back Gauge Range……………………………………………………………….......24”
Overall Dimensions LxWxH…………………………………….................…135 x 60 x 55-1/2”
Shipping weight………………………………………………..........……………….2900 lbs.
