Button punch Flangers | sheet metal button punch flanging machines

lockformer-logo

Lockformer Button Punch Snap Lock Flanger

With this Lockformer Button Punch Snap Lock Flanging machine you can roll single-direction curves down to a minimum radius of 3-1/2" inside or a 5" outside radius, almost automatically. These punched right-angle flange curves fit perfectly in the female button lock formed on the Lockformer® 20 gauge or the 24 gauge Button Punch Snap Lock.

Lockformer Button punch flanger

Specifications for Lockformer Button Punch Flanger:

  • Capacity : 20 gauge maximum , Working range 20-28 gauge
  • Depth of Pocket/Size : 7/16" flange
  • Speed : 18 feet per minute

Flagler 20 Button Punch Flanger

For manufacturing fittings using the button lock seam rather than Pittsburgh 2 step operation, first the flange is formed then the buttons are punched. This machine is built with a heavy duty cast iron gear housing with oil bath and complete with Flange Follower.

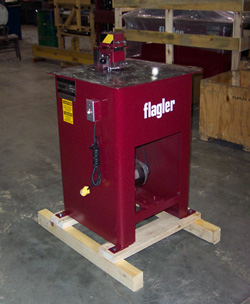

Flagler 20 gauge button punch flanger machine

Specifications for the Flagler 20 Gauge Button Punch Flanger:

  • Capacity: 20-26 Ga
  • Height of Flange: 3/8" High
  • Speed: Approx. 18 feet per minute.
  • Motor: 3/4 HP 115/1/60/1800 RPM .
  • Drive: Vee Belt.
  • Base: Arc Welded Steel. heavy Top Plate
  • Dimensions: 24" long, 24" wide, 38 5/8". Feed Table Height 34 5/8"
  • Shipping Weight: Approximately 250 pounds
