Cutting & Combination Machines

CNC Punching machines by Boschert

Boschert CombiLaser Series

The ideal combination: Punching and Fiber Laser cutting
Because the trend in terms of material savings, resource conservation, lightweight and functional integration rather else is going to thin sheet structures, Boschert completes the portfolio for the equipment of the Combi machines now on to an advanced fiber laser to Boschert Combicut laser.

In close cooperation with our partner Kjellberg Finsterwalde, this machine was designed with the fiber laser system XFocus 1000. The process integration with this fiber laser refers to the CombiLaser sizes 1000 x 2000, 1250 x 2500 and 1500 x 3000 mm, so that sheets of all sizes in various grades optimally and above all in a single setup can be completely processed.

Boschert CombiLaser Series

Flexibility at its finest.
To produce complex inner and outer contours quickly and in high quality in thin sheets, is possible only with laser cutting. Forming, tabs, beads, trims or threads are strength of the punching machine. The Boschert CombiLaser combines the advantages of all methods in one machine.

Further advantage of the laser CombiLaser Boschert:
All existing Boschert punching machine models can be connected to the fiber laser system. Therefore Boschert can focus entirely on the customer requirements.

Programmable disposal of small parts:
The cutted parts from the fiber laser can be quickly ejected from the work surface with 2 different parts chute. The part chute tables are arranged direct in front of the fiber laser.

Size: 150×150 mm and 700×700 mm

Security
Boschert has developed a security concept for the fiber laser in cooperation with the BG professional association. Optionally the machine can be also equipped with a sight protection device.





Return to TOP



Boschert CNC Punch / Plasma Machine COMBICUT® Series

Do you seek a cost-effective alternative to combination punch/laser machines? With the Boschert Combi-Cut Series, even thin gauge metal can be cut with very high quality, thanks to this partnership between Boschert and plasma technology firm Kjellberg. Heavy-duty dual, C-frame construction allows for the working of oversized sheets. HyPerformance technology aligns and focuses the plasma arc, improving arc stability and energy for more powerful precision cutting.

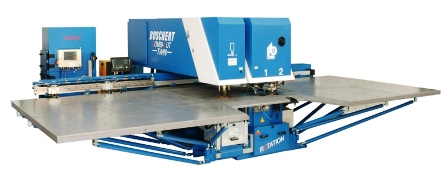

Boschert CNC Punch/Plasma Machine Combicut Series





Working Range:
CombiCut 750 x 1500: 30″ x 60″
CombiCut 750 x 1500: 40″ x 80″
CombiCut 1250 x 2500: 50″ x 100″
CombiCut 1500 x 3000: 60″ x 120″

Plasma Power: 130 amps
Maximum sheet length: 33′ w/ repo
Maximum sheet thickness: 1/2″

Maximum punching force:

Standard: 36 tons
Optional: 50 tons

Maximum workpiece weight:
440 lbs.
Prog. Parts Chute Size: 20″ x 20″
Maximum punch diameter: 4″

Tool change time:

Manual monotool: 15 sec.
RevoTool (4,6, or 8 tools): 2 sec.
Maximum stroke length: 3.5″

Maximum stroke rate:
Punching: 400 spm
Marking: 800 spm

Maximum positioning speed:

X axis: 2,360 ipm
Y axis: 1,180 ipm
Combined (x & y diagonally): 3,350 ipm

Positioning Accuracy: +/-0.004″
Repeatability: +/-0.001″
Control: Boschert Grapchic w/RS232
Type of Drives: AC Digital Servo
Height of Table Above Floor: 35.4″

Approximate Floor Space:

CombiCut 750 x 1500: 20′ x 16′ x 7’H
CombiCut 750 x 1500: 23′ x 18′ x 7’H
CombiCut 1250 x 2500: 26′ x 20′ x 7’H
CombiCut 1500 x 3000: 30′ x 21′ x 7’H

Approximate Weight:
CombiCut 750 x 1500: 29,750 lb.
CombiCut 750 x 1500: 31,750 lb.
CombiCut 1250 x 2500: 36,000 lb.
CombiCut 1500 x 3000: 38,250 lb.

Return to TOP

Return to TOP

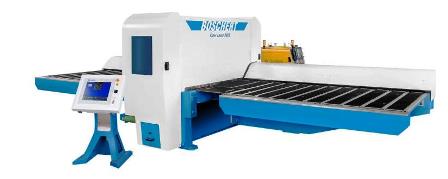

Boschert Fiber Laser

Boschert Fiber Laser Advantage:
Residual sheet processing from a size of 19.7" x 2" is possible. Small parts disposal up to a size of 59" x 14" possible during processing. Small parts transport with conveyor belt to the operator. Perfect accessibility during loading and unloading. Low space requirement, since no pallet changing is required. Aspiration of gases and vapors. Waste disposal of the slag via steel conveyor belt to the operator. Maintenance opening for the fiber laser on the operator‘s side

Boschert Fiber Laser

Technical Data:

Boschert FiberLaser 3015:


Working area:
X-axis:
120"
Y-axis: 60"
Z-axis: 10"

Space requirements:
Length:
340"
Width: 166"
Height: 87"
Weight: 17,640 Lbs

Max. Speeds:
Simultaneous (X & Y):
100 m/min

Accuracy:
Positioning Difference:
+- 0,05 mm
Repeatability:
+-0,03 mm

Control:
Type:
S-Box III Touch
Display:
19″ TFT Touchscreen
Data transfer:
RJ45 und USB

Part chute:
14" X 59"

Color:
Blue:
RAL 5017
Light Grey: RAL 7035


Boschert FiberLaser 4020:

Working area:
X-axis:
157"
Y-axis: 79"
Z-axis: 10"

Space requirements:
Length:
418"
Width: 186"
Height: 87"
Weight: 20,950 Lbs

Max. Speeds:
Simultaneous (X & Y):
100 m/min

Accuracy:
Positioning Difference:
+- 0,05 mm
Repeatability:
+-0,03 mm

Control:
Type:
S-Box III Touch
Display:
19″ TFT Touchscreen
Data transfer:
RJ45 und USB

Part chute: 14" X 79"

Color:
Blue:
RAL 5017
Light Grey: RAL 7035


Laser Data:

Max. Power:
1000:
1000 W
2000: 2000 W
4000: 4000 W

Recommended cutting performance mild steel (O2):
1000: 6 mm
2000: 10 mm
4000: 15 mm

Recommended cutting performance stainless steel (N2):
1000: 4 mm
2000: 6 mm
4000: 8 mm

Recommended cutting performance Aluminium (N2):
1000: 3 mm
2000: 4 mm
4000: 6 mm

Connected load Laser:
1000: 7 kVA
2000: 7 KVA
4000: 14 kVA

Conected load machine/suction:
1000: 10 kVA
2000: 10 KVA
4000: 10 kVA





Return to TOP



Return to the Boschert Machinery Page
