Hydraulic Notchers

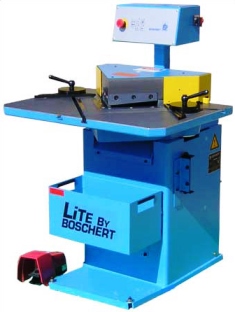

Boschert Lite Hydraulic Power Notcher
Boschert’s powerful notchers offer superior performance, clean cuts and high accuracy. Enjoy a 90° fixed angle and variable angle from 30-120°. The Lite Hydraulic Power Notcher offers front to back cutting, 50 strokes per minute (adjustable), solid state circuitry and a milled bed surface for no-float and no-stick operation. Capacity is 5/32” mild steel capacity and 10 ga. stainless steel capacity, with notch widths of 8-7/8” x 8 7/8” 90° notch.
Boschert Lite Hydraulic Power Notcher
Features:
Boschert Lite Hydraulic Power Notcher Specifications
5/32″ mild steel capacity
10 ga. stainless steel capacity
8-7/8″ x 8-7/8″ 90° notch
Front to back cutting to hold material against stop
Milled bed surface for no float or stick operation
35″ wide by 25″ deep table with milled surface so material does not float or stick
Front to back cutting
Hi-Carbon, Hi-Chrome blades that overlap on the cutting edge to eliminate blade chipping
Two heavy-duty adjustable stops with 10″ horizontal bars
One engraved brass scale and T-slot parallel to each blade
Moveable electric foot pedal
50 strokes per minute (adjustable)
Solid state circuitry
Jog, single or continuous mode
4.5 horsepower motor
Scrap bucket
Return to TOP
Boschert Silver Eagle Hydraulic Power Notcher W/ Second Station
With a 90° fixed angle. The Silver Eagle Quick Hydraulic Power Notcher offers the superior performance, clean cuts and high accuracy Boschert is known for. Enjoy front-to-back cutting to hold material against stop, 50 strokes per minute (adjustable), internal stop for shearing, and a milled bed surface for no-float or no-stick operation. Capacity is 1/4” mild steel capacity and 5/32” stainless steel capacity, with notch widths of 8-7/8” x 8 7/8” 90° notch. The second station can be equipped with either a coping station or punching station. Alternatively, the Silver Eagle Quick Hydraulic Power Notcher offers a second station that can change between punching, coping and notching.
Boschert Silver Eagle Hydraulic Power Notcher W/ Second Station
Features:
Boschert Silver Eagle Hydraulic Power Notcher Specifications
Notching Station:
1/4″ mild steel*, 5/32″ stainless steel** capacity
8-7/8″ x 8-7/8″ 90 degree notch
Super size table, 43″ wide by 31″ deep
Milled bed surface for no float or stick operation
Moveable electrical foot pedal
Front to back cutting to hold material against stop
Adjustable stroke, 35 to 50 per minute
Two material hold downs
Two heavy duty stops with 12″ sliding bars
Scale and T-shot left to right at front of bed
Scale and T-shot parallel to the blades
Scale on left and right side of table top
Wired 220v/60c/3ph
Internal stop for shearing
Scrap bucket
Punching Station:
Trumpf style tooling
5/32″ mild steel*, 1/8″ stainless steel**
Maximum punch size: 1-1/8
Size of punching table: 43″ wide by 13″ deep
Scrap bucket
Coping Station:
5/32″ mild steel*, 1/8″ stainless steel**
Cope 3.937″ deep by 1″ to infinity by moving the stock
Scrap bucket
Silver Eagle Quick Second Station for Coping, Punching or Notching
A quick-change system for the second station with the blades mounted in a cassette with the correct clearance preset.
Cassettes for coping, punch tools and small notches are available.
Secondary Notching Station:
5/32″ mild steel*, 1/8″ stainless steel**
15-45 degree angle
4″ long blades
Scrap bucket
* mild steel designated as 50,000 psi
** Stainless designated as 75,000 psi
Return to TOP
Boschert Eagle & Eagle 250 Hydraulic Power Notcher W/ Cope
Boschert’s powerful notchers offer superior performance, clean cuts and high accuracy. Enjoy a 90° fixed angle and variable angle from 30-120°. The Eagle & Eagle 250 Hydraulic Power Notcher w/Cope offers front to back cutting to hold material against stop, 50 strokes per minute (adjustable), solid state circuitry, and a milled bed surface for no float or stick operation. Capacity is 1/4” mild steel capacity and 3/16” stainless steel capacity, with notch widths of 8-7/8” x 8 7/8” 90° notch. Additionally, the Eagle offers two material hold downs and a special blade guard.
Boschert Eagle & Eagle 250 Hydraulic Power Notcher W/ Cope
Features:
Boschert Eagle & Eagle 250 Hydraulic Power Notcher Specifications
1/4″ mild steel capacity
3/16″ stainless steel capacity
8-7/8″ x 8-7/8″ 90° notch
Front to back cutting to hold material against stop
Milled bed surface for no float or stick operation
35″ wide by 25″ deep table with milled surface so material does not float or stick
Front to back cutting
Hi-Carbon, Hi-Chrome blades
Internal stop for shearing
Two patented 12″ combination horizontal hold down and stop bars
Engraved brass scales
Moveable electric foot pedal
Adjustable stroke, 50 per minute
Solid state circuitry
Jog, single or continuous mode
6.5 horsepower motor
Scrap bucket
The Eagle 250 Has These Additional features:
Two material hold downs
Special blade guard
Return to TOP
Boschert Golden Eagle Hydraulic Power Notcher
Boschert Golden Eagle Hydraulic Power Notcher
Features:
Boschert Golden Eagle Hydraulic Power Notcher Specifications
3/8″ mild steel* capacity
1/4″ stainless steel** capacity
8-7/8″ x 8-7/8″ 90° notch
Front to back cutting to hold material against stop
Milled bed surface for no float or stick operation
43″ wide by 31″ deep table
Four material hold downs
Hi-Carbon, Hi-Chrome blades that overlap on the cutting edge to eliminate blade chipping
Internal stop for shearing
Three sets of engraved brass scales for accurate and easy setup
Two heavy duty stops with 19″ sliding bars
Engraved brass scales
Moveable electric foot pedal
Adjustable stroke length, 35 per minute
Solid state circuitry
Jog, single or continuous mode
6.5 horsepower drive motor
Scrap bucket
One scale and two T-slots parallel to the blades
Scale on left and right side of table top
Scale and T-slot left to right at front of table
* mild steel designated as 50,000 psi
** Stainless designated as 75,000 psi
Return to TOP
Boschert K30-120 Hydraulic Variable Angle Notcher
With a 90° fixed angle, the K30-120 Hydraulic Variable Angle Notcher offers superior performance, clean cuts and high accuracy. Enjoy front-to-back cutting to hold material against stop, two 30° upper blades working directly with two corresponding lower blades, engraved brass scales, and a milled bed surface for no-float or no-stick operation. Capacity is 1/4” mild steel and 0.160” stainless steel with notch widths of 7.9” x 7.9” 90° notch. Blades are automatically shifted by pneumatic power. Additionally, the K30-120 offers Hi-Carbon, Hi-Chrome blades that overlap on the cutting edge to eliminate blade chipping, a 6.5 horsepower motor, solid state circuitry and a moveable electric foot pedal.
Boschert Variable Angle Notchers offer a unique approach to notching that directly couples the upper and lower blades. This system guarantees longer blade life when compared to other systems. Paired with Boschert’s world-renowned commitment to impeccable German engineering, safety, and user-focused design, our family of variable angle notchers offer something for every notching project on every assembly floor.
K30-120 Hydraulic Variable Angle Notcher
Features:
Boschert K30-120 Hydraulic Power Notcher Specifications
1/4″ mild steel* capacity
0.160″ stainless steel** capacity
7.9″ x 7.9″ notch
All Angles from 30° to 120° without blade or clearance changes
Front to back cutting to hold material against stop
Milled bed surface for no float or stick operation
39.4″ wide by 25.6″ deep table
Two 30° upper blades working directly with two correpondending lower blades
Blades are automatically shifted by pneumatic power
Hi-Carbon, Hi-Chrome blades that overlap on the cutting edge to eliminate blade chipping
T-slots and engraved brass scales on the table
Two heavy duty adjustable stops with 12″ sliding bars
Engraved brass scales
Solid-state circuitry with moveable electric foot pedal
Jog, single or continuous mode
Ability to notch into the bend of a 90° angle
Clear view of the blades tips
6.5 horsepower drive motor
Scrap bucket
* mild steel designated as 50,000 psi
** Stainless designated as 75,000 psi
How the BOSCHERT SYSTEM Works:
A 30° upper blade is directly connected to two corresponding lower blades. All notches of more than 30° are
accomplished
automatically with a right and left notch. Pneumatic power rotates the blades after each stroke.
Return to TOP

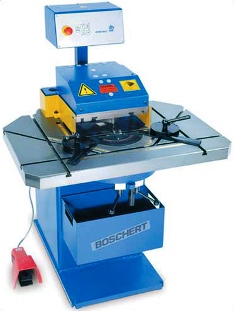

Boschert Vari Iv Hydraulic Variable Angle Notcher
With a 90° fixed angle, the Vari Iv Hydraulic Variable Angle Notcher is a powerful Boschert notcher offer superior performance, clean cuts and high accuracy. Enjoy front-to-back cutting to hold material against stop, two 30° upper blades working directly with two corresponding lower blades, four material hold-downs, and a milled bed surface for no-float or no-stick operation. Capacity is 5/32” mild steel capacity and 1 ga. stainless steel capacity, with notch widths of 5.9” x 5.9” 90° notch. Blades shift by pneumatic power. Additionally, the Vari Iv offers Hi-Carbon, Hi-Chrome blades that overlap on the cutting edge to eliminate blade chipping, a 6.5 horsepower motor, solid state circuitry and a moveable electric foot pedal.
Boschert Variable Angle Notchers offer a unique approach to notching that directly couples the upper and lower blades. This system guarantees longer blade life when compared to other systems. Paired with Boschert’s world-renowned commitment to impeccable German engineering, safety, and user-focused design, our family of variable angle notchers offer something for every notching project on every assembly floor.
Boschert Vari Iv Hydraulic Variable Angle Notcher
Features:
Boschert Vari Iv Hydraulic Power Notcher Specifications
5/32″ mild steel* capacity
11 ga. stainless steel** capacity
5.9″ x 5.9″ notch
All Angles from 30° to 120° without blade or clearance changes
Front to back cutting to hold material against stop
Milled bed surface for no float or stick operation
39.4″ wide by 25.6″ deep table
Two 30° upper blades working directly with two correpondending lower blaes
Blades are automatically shifted by pneumatic power
Hi-Carbon, Hi-Chrome blades that overlap on the cutting edge to eliminate blade chipping
T-slots and engraved brass scales on the table
Two heavy duty adjustable stops with 12″ sliding bars
Engraved brass scales
Solid-state circuitry with moveable electric foot pedal
Jog, single or continuous mode
Ability to notch into the bend of a 90° angle
Clear view of the blades tips
6.5 horsepower drive motor
Scrap bucket
* mild steel designated as 50,000 psi
** Stainless designated as 75,000 psi
How the BOSCHERT SYSTEM Works:
A 30° upper blade is directly connected to two corresponding lower blades. All notches of more than 30° are
accomplished
automatically with a right and left notch.
Pneumatic power rotates the blades after each stroke.
