New Machinery | Ironworkers | Edwards Manufacturing Co. | 100 Ton Ironworker

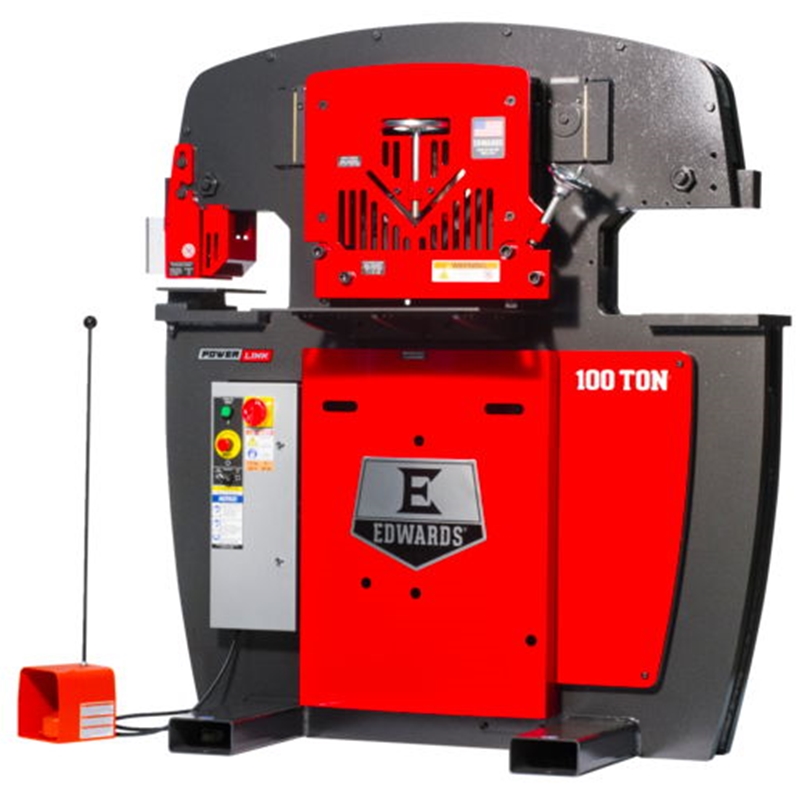

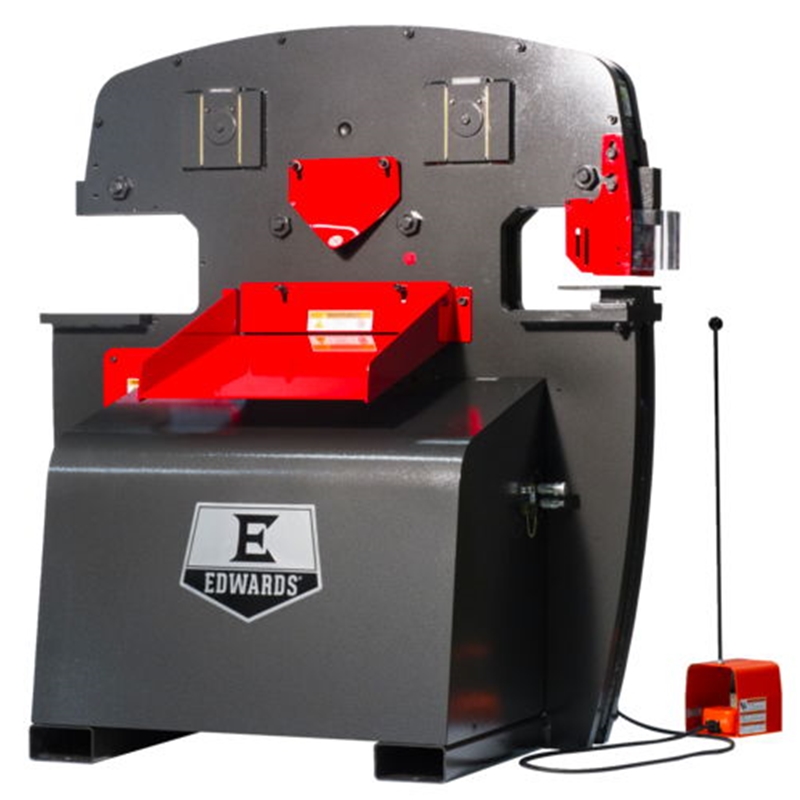

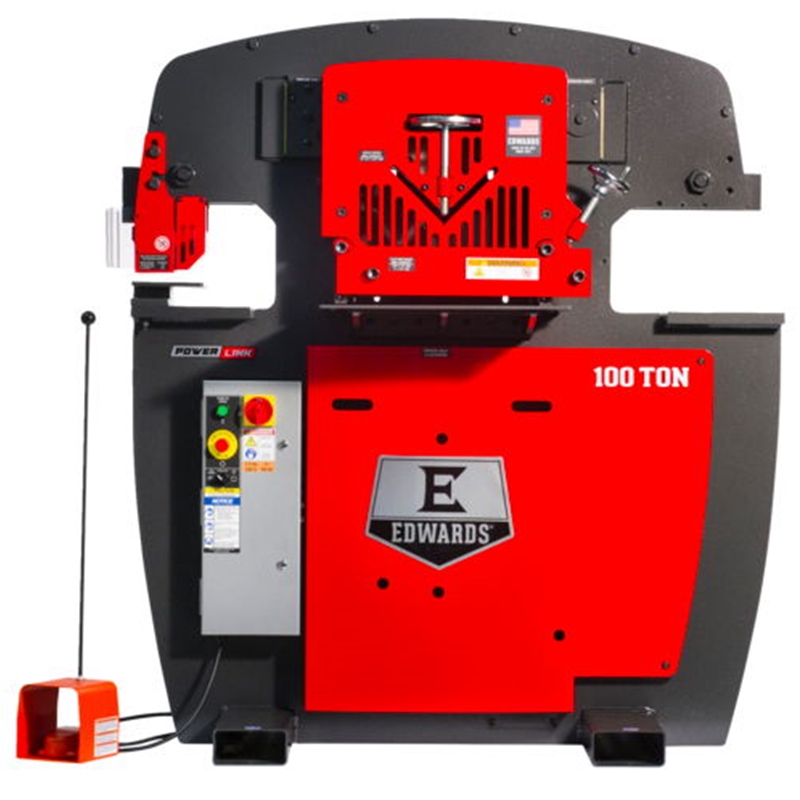

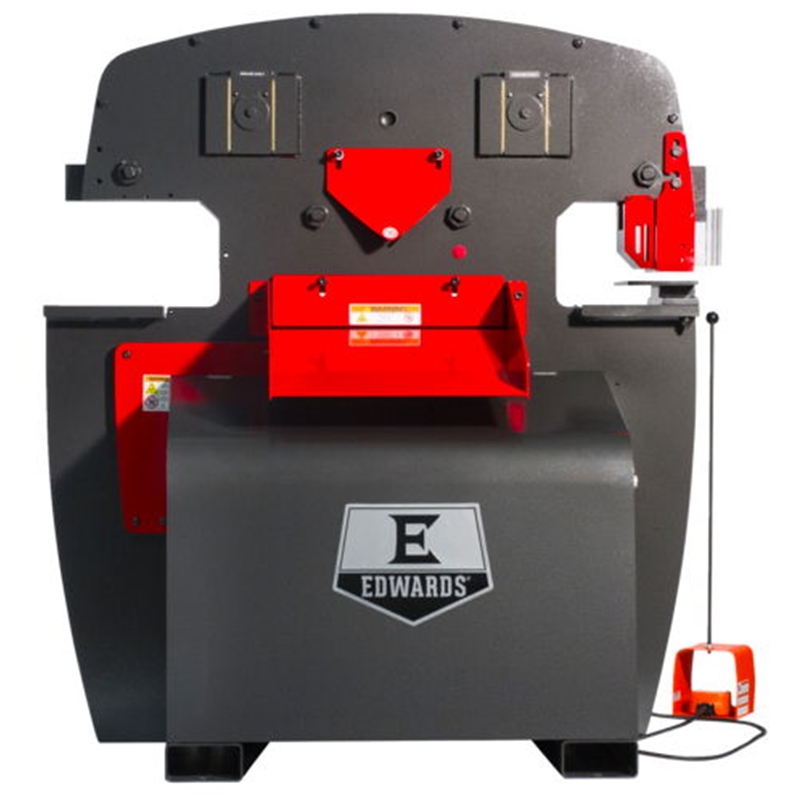

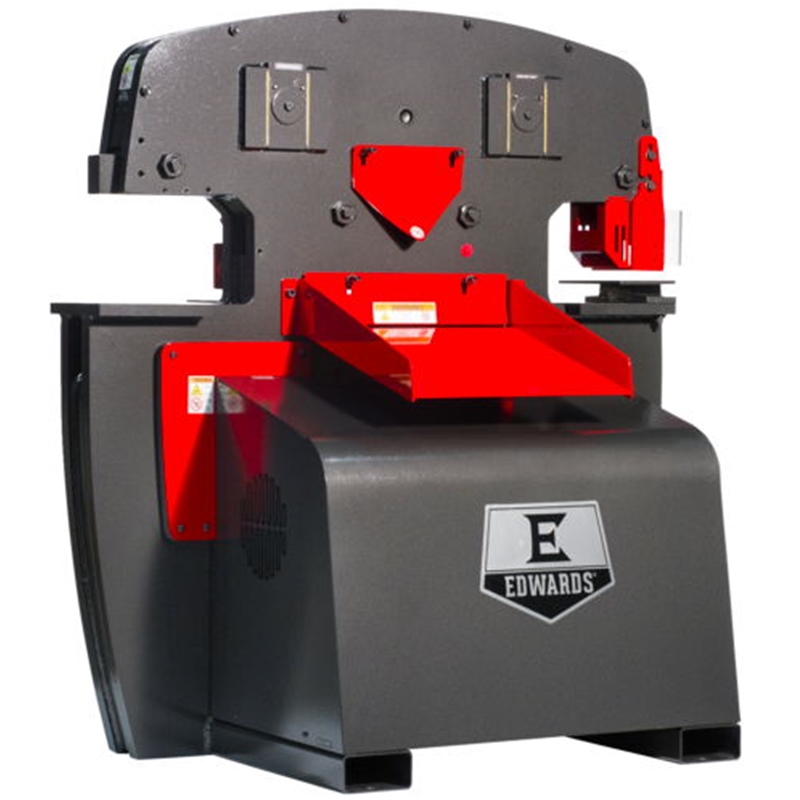

100 Ton Ironworker



Manufacturer:

Condition: New

Description: If you're looking for versatility and power, the Edwards 100 Ton Ironworker is perfect for your shop. Standard features include a Punch Assembly, a 14" wide Flat Bar Shear, a high capacity Angle Shear and a universal open tooling station designed for optional Tooling Accessories allowing you to select the perfect tool for your needs.

The optional PowerLink System allows your Ironworker to act as a power source to our expanding line of innovative PowerLink Hydraulic Tools, such as the 10 Ton Tube/Pipe Bender, 20 Ton Shop Press and 40 Ton Shop Press.

The Workhorse

  • Four Available Workstations
  • High Capacity Angle Shear
  • Universal Open Tooling Station
  • Electric Stroke Control
  • ANSI B11.5-1988R(02) Compliant
  • ETL/UL Approved Controls

View Machine Spec Sheet Here

View Machine Manual Here



Specifications:


PUNCH
Rating 100 Tons
Max Capacity 1-1/16" Dia. in 1" A36
(65,000 PSI Tensile)
Stroke 1-13/16"
Throat Depth 11"
Open Height 8-3/4"
Shut Height 6-15/16"
Work Height 39-1/16"

FLAT BAR SHEAR
Max Capacity 3/4" x 14"
1" x 10"
Max. Round 1-1/4"
Max. Square 1-1/4"
Work Height 37"

ANGLE SHEAR
Max Capacity 6" x 6" x 1/2"
Work Height 43-15/16"

Optional Coper Notcher
Max Capacity 2-1/2" x 6" x 1/2"
Work Height 42"



Open Station
Throat Depth 14-3/4"
Open Height 8-3/4"
Shut Height 16-15/16"
Stroke 1-13/16"
Work Height 37"

GENERAL SPECIFICATIONS
Standard Motor 7.5 HP 3~ 208 V or 230 V
1765 RPM 22 A
Optional Motors 7.5 HP 3~ 460 V 1765 RPM 11 A
7.5 HP 3~ 575 V 1770 RPM 8 A
5 HP 1~ 230 V 1725 RPM 23 A
*7.5 HP 1~ 230 V 1765 RPM 36 A
*Required for 1~ Hydraulic Accessory Pack
Hydraulic Pump 10-1/2 GPM - 2 Stage
Valve Pressure 3500 PSI
Reservoir 17 Gallons
Cylinder 3-1/2" Ram

Dimensions
Height 61-11/16"
Width 56-1/8"
Depth 45"
Shipping Weight 4650 lbs
