New Machinery | Ironworkers | Edwards Manufacturing Co. | 110/65 Ton Elite Dual Operator Ironworker

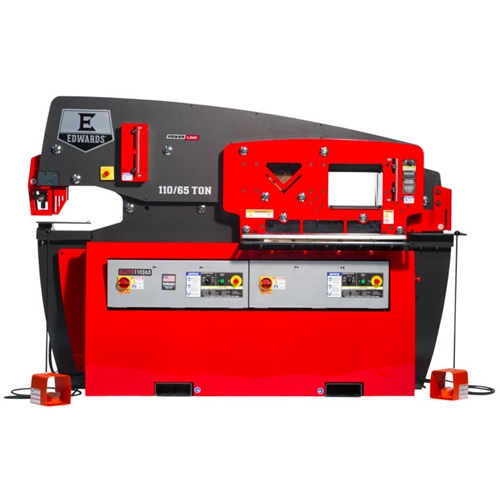

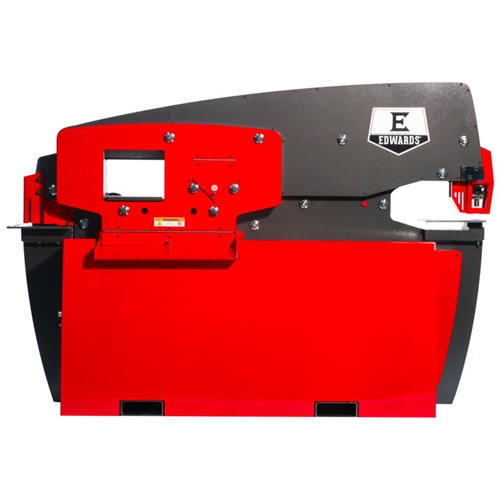

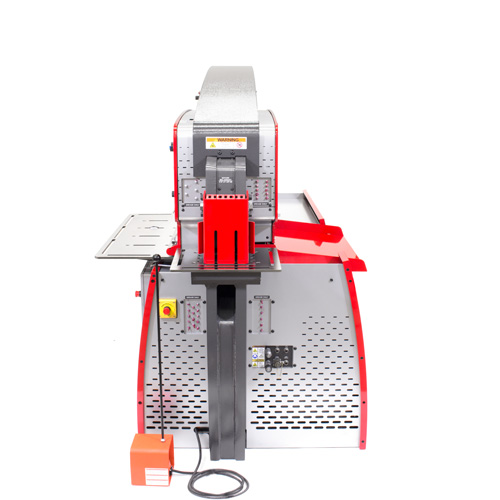

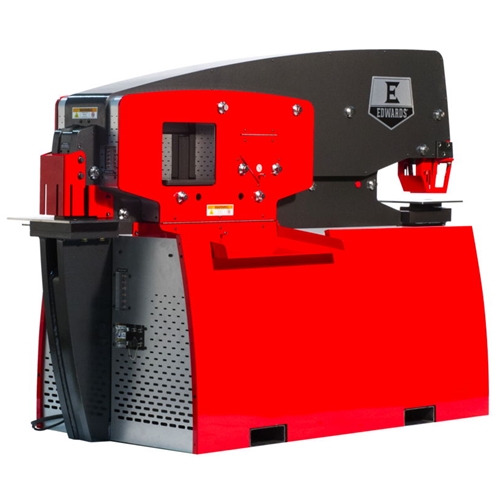

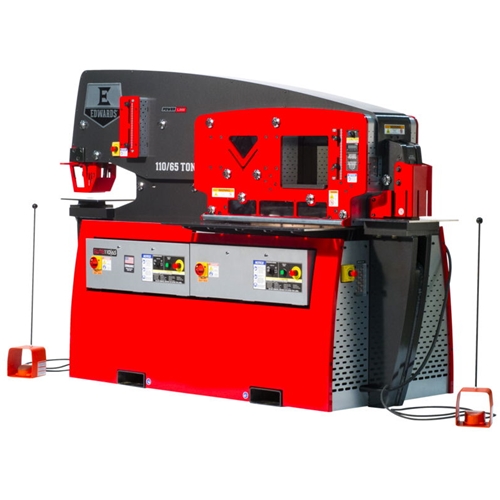

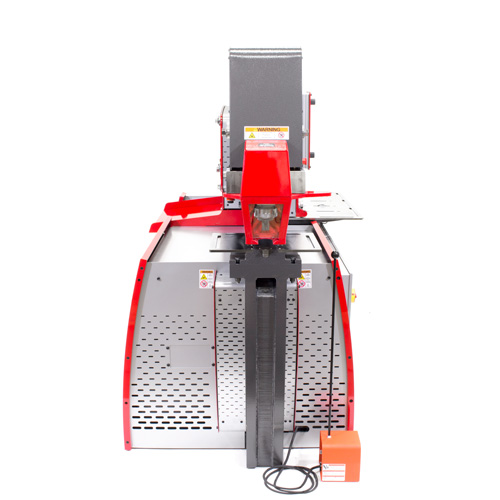

110/65 Ton Elite Dual Operator Ironworker



Manufacturer:

Condition: New

Description: Designed for simultaneous use by two people, the Edwards ELITE 110|65 Ironworker is the most powerful of the new ELITE line. It features a standard Punch Assembly, 24" wide Flat Bar Shear, Angle Shear, a dedicated Coper Notcher and a universal open tooling station for optional Tooling Accessories.

The integrated PowerLink System enables your ELITE 110|65 to act as a power source for our expanding line of innovative PowerLink Hydraulic Tools.

True Dual Operation

  • Five Workstations
  • Two Independent Power Plants
  • Super-size Punch Throat Depth of 17-3/4"
  • Universal Open Tooling Station
  • ANSI B11.5-1988R(02) Compliant
  • ETL/UL Approved Controls
  • ELITE Integrated Features:
    • Hydraulic Hold-Down
    • E-Stop / Lockout-Tagout
    • Electric Stroke Control
    • Hydraulic Accessory Pack
    • Central Lubrication System
    • Swing-Away Stripper Assembly
    • Roller Encoder Measuring System
    • Quick Change Punch Assembly
    • Premium Gauging Tables
    • LED Lighting

View Machine Spec Sheet Here

View Machine Manual Here



Specifications:


PUNCH
Rating 110 Tons
Max Capacity 1-3/8" Dia. in 1" A36
(65,000 PSI Tensile)
Stroke 3"
Throat Depth 17-3/4"
Open Height 9-3/4"
Shut Height 6-9/16"
Work Height 37-1/2"

FLAT BAR SHEAR
Rating 65 Tons
Max Capacity 3/8" x 24"
1/2" x 14"
1" x 4"
Max. Round 1"
Max. Square 1"
Work Height 33-1/2"

ANGLE SHEAR
Max Capacity 5" x 5" x 3/8"
Work Height 44"

Coper Notcher
Max Capacity 2-1/2" x 6" x 3/8"
Work Height 35-5/8"



Open Cavity
Height 9"
Width 11-3/4"
Work Height 40-7/8"

GENERAL SPECIFICATIONS
Standard Motor 7.5 HP 3~ 208 V or 230 V 1765 RPM 22 A
Optional Motors 7.5 HP 3~ 460 V 1765 RPM 11 A
7.5 HP 3~ 575 V 1770 RPM 8 A
7.5 HP 1~ 230 V 1765 RPM 36 A
Hydraulic Pump 10-1/2 GPM - 2 Stage
Valve Pressure 3000 PSI
Reservoir 17 Gallons
Cylinder (Punch Side) 7-1/2" Bore / 3" Ram
Cylinder (Shear Side) 6" Bore / 3-1/2" Ram

Dimensions
Height 65-1/8"
Width 91-9/16"
Depth 44-7/8"
Shipping Weight 8580 lbs
