New Machinery | Ironworkers | Edwards Manufacturing Co. | 120 Ton Ironworker

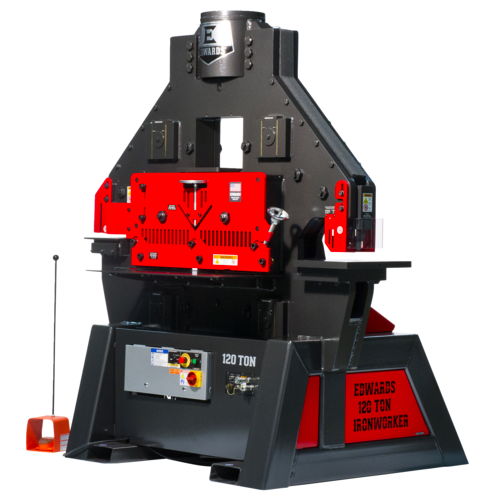

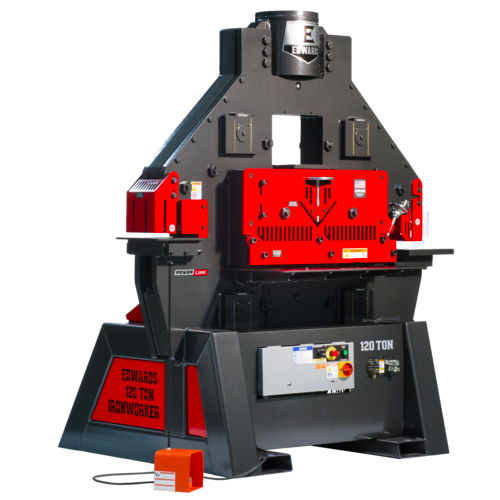

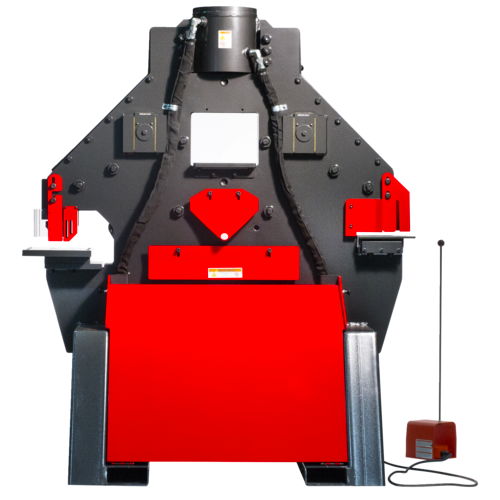

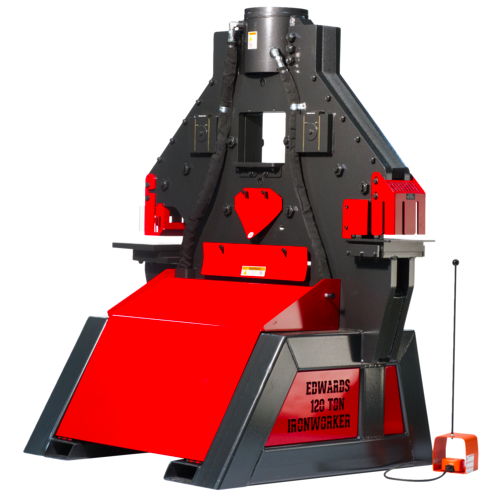

120 Ton Ironworker



Manufacturer:

Condition: New

Description: Our most powerful Ironworker, the Edwards 120 Ton Ironworker offers the most in capacity and versatility. Standard features include a Punch Assembly, 24" wide Flat Bar Shear, high capacity Angle Shear, Coper Notcher and a universal open tooling station for optional Tooling Accessories allowing you to select the perfect tool for your needs.

The optional PowerLink System allows your Ironworker to act as a power source to our expanding line of innovative PowerLink Hydraulic Tools, such as the 10 Ton Tube/Pipe Bender, 20 Ton Shop Press and 40 Ton Shop Press.

Ideal for the Large Shop

  • Five Available Workstations
  • Universal Open Tooling Station
  • 24" Flat Bar Shear
  • Dedicated Coper Notcher
  • Electric Stroke Control
  • ANSI B11.5-1988R(02) Compliant
  • ETL/UL Approved Controls

View Machine Spec Sheet Here

View Machine Manual Here



Specifications:


PUNCH
Rating 120 Tons
Max Capacity 1-1/2" Dia. in 1" A36
(65,000 PSI Tensile)
Stroke 2"
Throat Depth 11"
Open Height 9-1/8"
Shut Height 7-1/8"
Work Height 36-5/8"

FLAT BAR SHEAR
Max Capacity 1/2" x 24"
1" x 12"
Max. Round 1-1/4"
Max. Square 1-1/4"
Work Height 33-1/4"

ANGLE SHEAR
Max Capacity 6" x 6" x 1/2"
Work Height 52-1/2"

Coper Notcher
Max Capacity 3" x 6" x 1/2"
Work Height 40"



Open Cavity
Height 9"
Width 11-3/4"
Work Height 51-3/4"

GENERAL SPECIFICATIONS
Standard Motor 10 HP 3~ 208 V or 230 V
1770 RPM 26 A
Optional Motors 10 HP 3~ 460 V 1770 RPM 12 A
10 HP 3~ 575 V 1770 RPM 10 A
10 HP 1~ 230 V 1740 RPM 40 A
Hydraulic Pump 24 GPM
Valve Pressure 3800 PSI
Reservoir 17 Gallons
Cylinder 2-1/2" Ram

Dimensions
Height 79-3/8"
Width 60"
Depth 60"
Shipping Weight 5500 lbs
