New Machinery | Ironworkers | Edwards Manufacturing Co. | 60 Ton Ironworker



60 Ton Ironworker



Manufacturer:

Condition: New

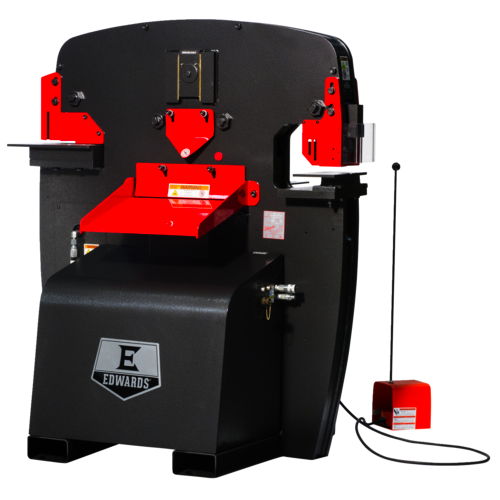

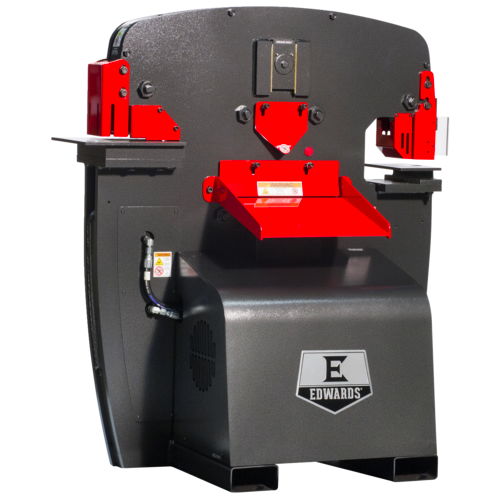

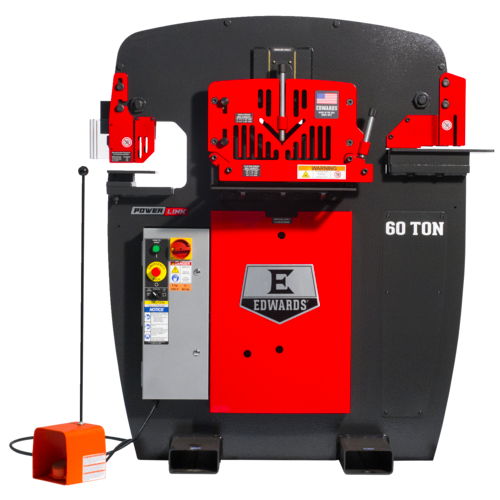

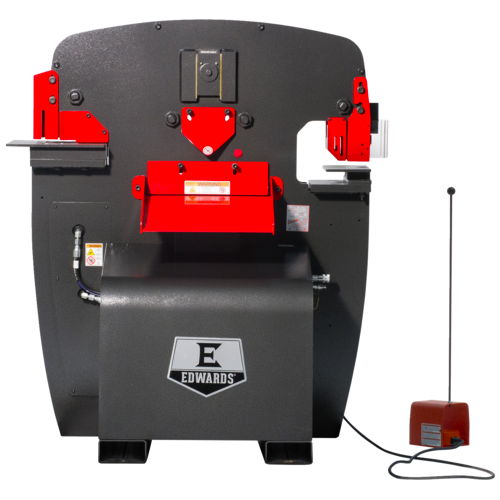

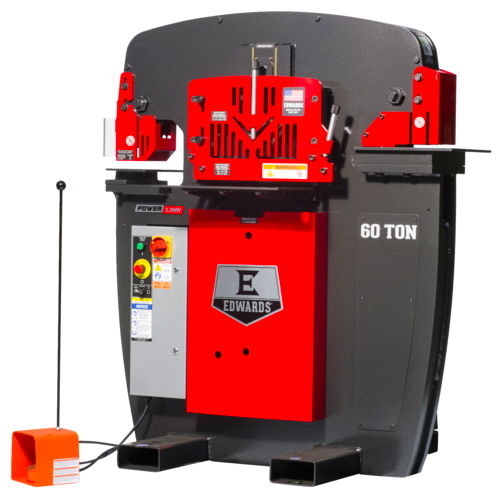

Description: The Edwards 60 Ton Ironworker is a robust machine featuring a dedicated Coper Notcher station, adding strength and stability to this great tool. Standard features include a Punch Assembly with Pedestal Die Table, 14" wide Flat Bar Shear, Angle Shear and Coper Notcher.

The optional PowerLink System allows your Ironworker to act as a power source to our expanding line of innovative PowerLink Hydraulic Tools, such as the 10 Ton Tube/Pipe Bender, 20 Ton Shop Press and 40 Ton Shop Press.

Our Best Value

  • Four Loaded Workstations
  • Dedicated Coper Notcher Station
  • Electric Stroke Control
  • ANSI B11.5-1988R(02) Compliant
  • ETL/UL Approved Controls

View Machine Spec Sheet Here

View Machine Manual Here



Specifications:


PUNCH
Rating 60 Tons
Max Capacity 1" Dia. in 3/4" A36
(65,000 PSI Tensile)
Stroke 1-1/4"
Throat Depth 8-7/8"
Open Height 8-1/8"
Shut Height 6-7/8"
Work Height 36-9/16"

FLAT BAR SHEAR
Max Capacity 3/8" x 14"
1/2" x 12"
3/4" x 4"
Max. Round 7/8"
Max. Square 7/8"
Work Height 34-1/2"

ANGLE SHEAR
Max Capacity 3" x 3" x 1/2"
4" x 4" x 3/8"
Work Height 39-7/8"




Coper Notcher
Max Capacity 2-1/2" x 4" x 3/8"
Work Height 39-1/2"

GENERAL SPECIFICATIONS
Standard Motor 5 HP 3~ 208 V or 230 V
1725 RPM 14 A
Optional Motors 5 HP 3~ 460 V 1725 RPM 7 A
5 HP 3~ 575 V 1725 RPM 6 A
5 HP 1~ 230 V 1725 RPM 23 A
Hydraulic Pump 3-1/2 GPM - 1 Stage
Valve Pressure 2500 PSI
Reservoir 7 Gallons
Cylinder 2-1/2" Ram

Dimensions
Height 56-1/8"
Width 46-1/8"
Depth 36-1/8"
Shipping Weight 2550 lbs
