New Machinery | Ironworkers | Edwards Manufacturing Co. | 75 Ton Ironworker

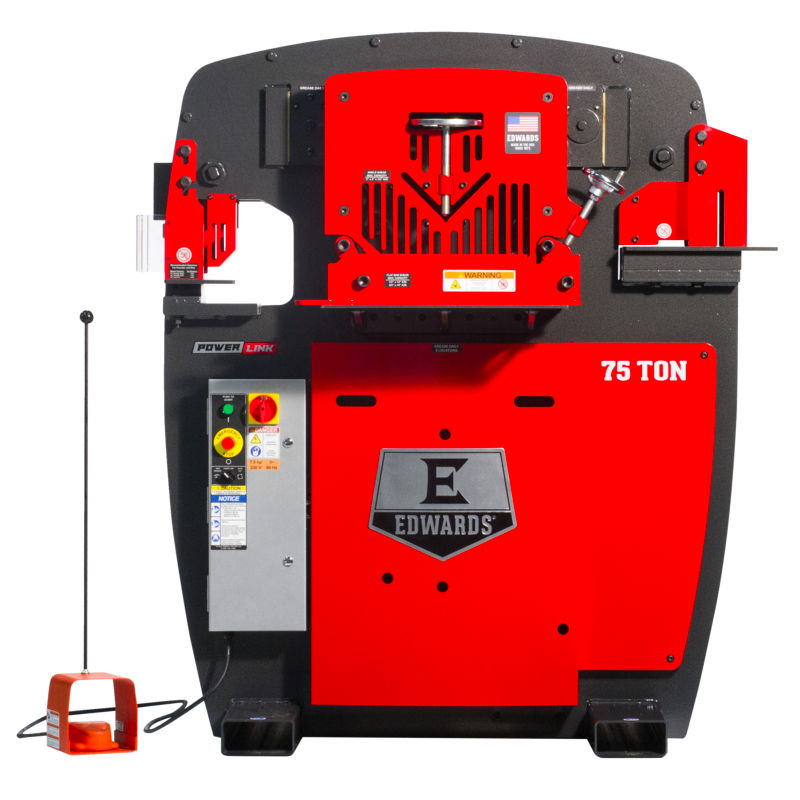

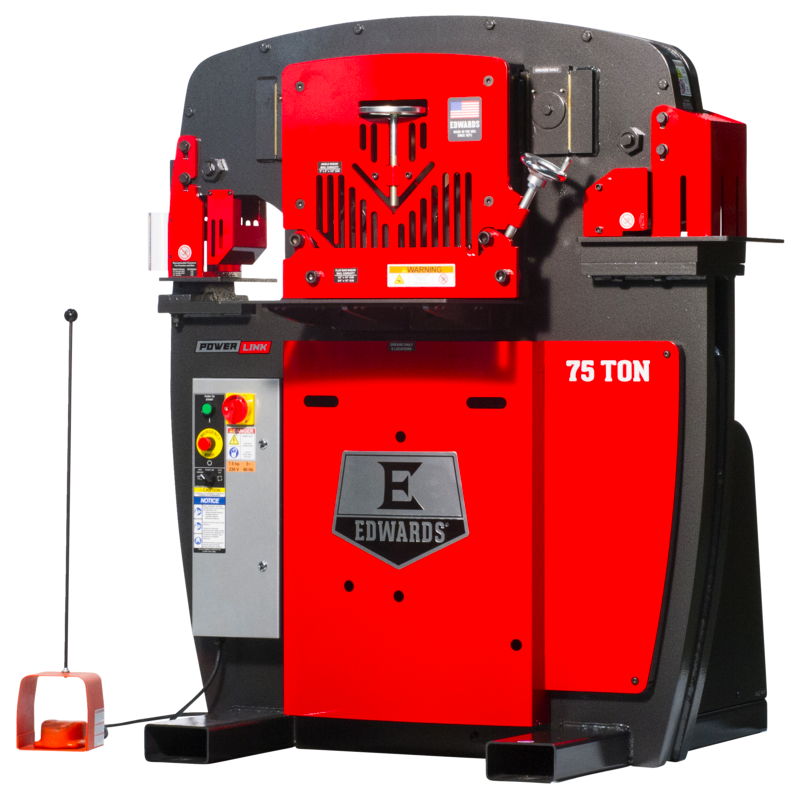

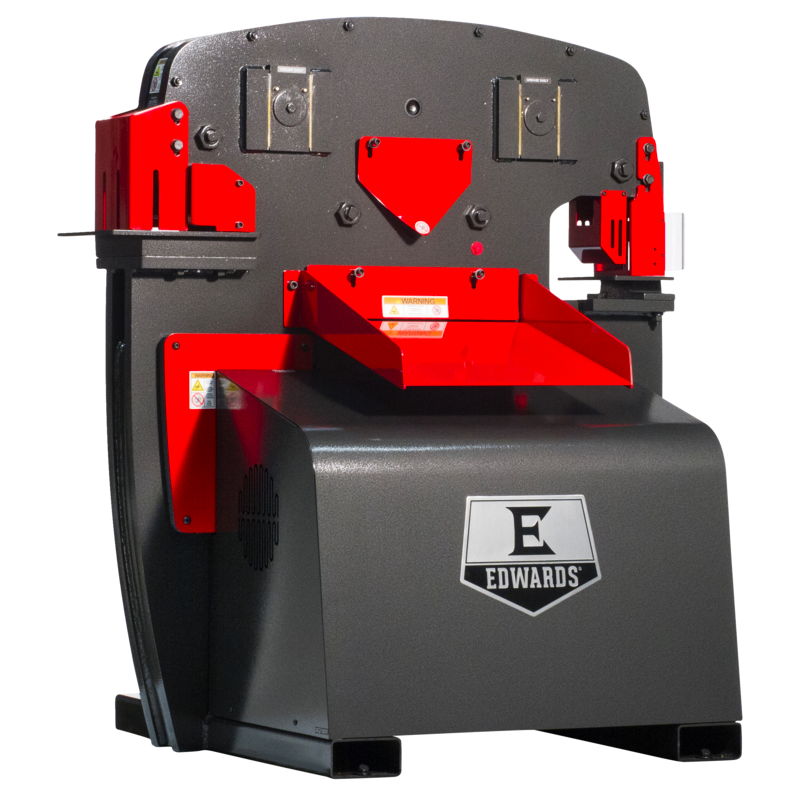

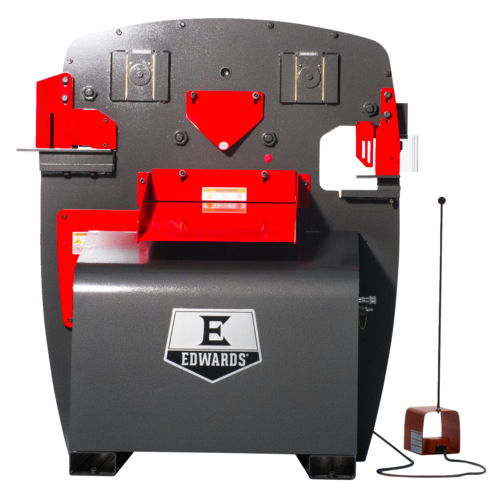

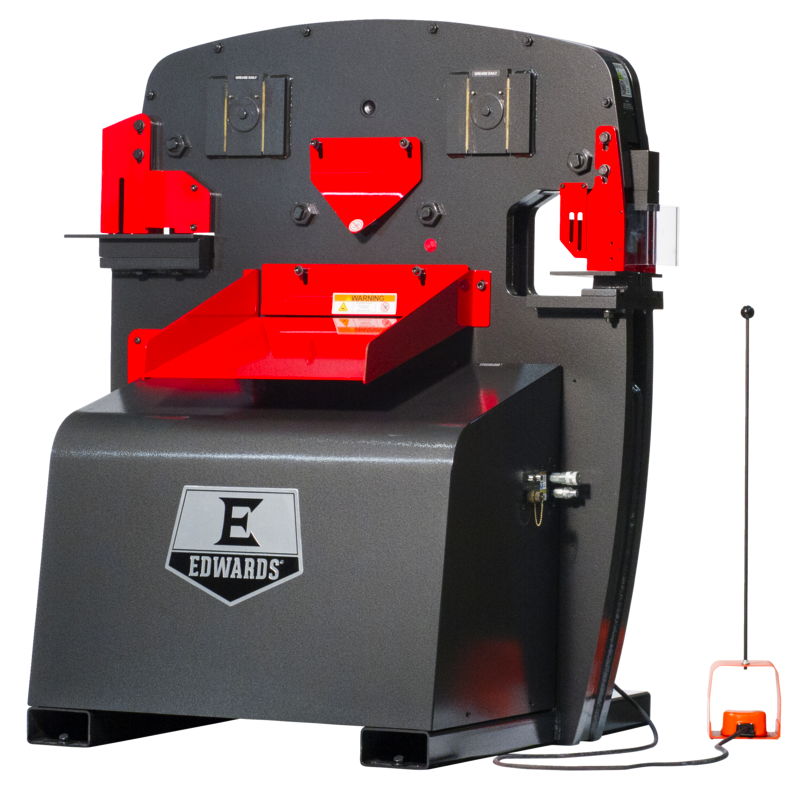

75 Ton Ironworker



Manufacturer:

Condition: New

Description: The Edwards 75 Ton Ironworker offers you greater capacity to accomplish larger tasks. Its standard features include a Punch Assembly with Pedestal Die Table, a 14" wide Flat Bar Shear, Angle Shear and Coper Notcher. The Punch Assembly is easily converted to an open station designed to accept optional Tooling Accessories, allowing flexibility to customize your Ironworker according to your needs.

The optional PowerLink System allows your Ironworker to act as a power source to our expanding line of innovative PowerLink Hydraulic Tools, such as the 10 Ton Tube/Pipe Bender, 20 Ton Shop Press and 40 Ton Shop Press.

The Shop Standard

  • Four Available Workstations
  • Punch Assembly Designed for Optional Tooling
  • Dedicated Coper Notcher Station
  • Electric Stroke Control
  • ANSI B11.5-1988R(02) Compliant
  • ETL/UL Approved Controls

View Machine Spec Sheet Here

View Machine Manual Here



Specifications:


PUNCH
Rating 75 Tons
Max Capacity 1-1/16" Dia. in 7/8" A36
(65,000 PSI Tensile)
Stroke 1-13/16"
Throat Depth 10"
Open Height 8-3/4"
Shut Height 6-15/16"
Work Height 39-1/16"

FLAT BAR SHEAR
Max Capacity 1/2" x 14"
3/4" x 10"
Max. Round 1"
Max. Square 1"
Work Height 37"

ANGLE SHEAR
Max Capacity 5" x 5" x 1/2"
Work Height 43-15/16"




Coper Notcher
Max Capacity 2-1/2" x 5" x 1/2"
Work Height 42"

GENERAL SPECIFICATIONS
Standard Motor 7.5 HP 3~ 208 V or 230 V
1765 RPM 22 A
Optional Motors 7.5 HP 3~ 460 V 1765 RPM 11 A
7.5 HP 3~ 575 V 1770 RPM 8 A
5 HP 1~ 230 V 1725 RPM 23 A
*7.5 HP 1~ 230 V 1765 RPM 36 A
*Required for 1~ Hydraulic Accessory Pack
Hydraulic Pump 10-1/2 GPM - 2 Stage
Valve Pressure 3500 PSI
Reservoir 17 Gallons
Cylinder 3-1/2" Ram

Dimensions
Height 60-1/4"
Width 50"
Depth 45"
Shipping Weight 4100 lbs
