Tin Knocker Hand Brakes | sheet metal brakes

Tin Knocker Box & Pan Brake Model TK 1648

The TK box and pan brakes are made of all steel welded construction, with adjustable truss bars and bronze bushings. The brakes come with removable apron angle and apron insert, permitting .25" (6.35mm) reverse bends in lighter materials. The nose bar is removable as well, and the brakes are equipped with a precise stop rod for repeat bends.

*Shown With Optional Stand


TK 1648 Box & Pan Brake Specifications:
Capacity: 16 Gauge
Bend Length: 48"
Max Beam Lift: 1.25"
Max Box Depth: 4"
Min. Reverse Bend: .25
Min. Flange: 1"
Finger Width: 2,3,4"
Dimensions: 64"Lx28"Wx32"H
Weight: 493 lbs

Return to TOP



Tin Knocker Portable Brake Model TK 422


A quality portable brake, with folding legs and lift handles, this brake can easily be put on a truck and taken to the job site.

Features include:
Folding Legs for Easy Transport
Lift Handles on Both Ends for Ease of Handling
4 ft x 22 Gauge Capacity

TK 422 Portable Brake Specifications:
Capacity: 22 Ga Mild Steel Sheet Metal
Bend Length: 48.25"
Beam Lift: 1"
Dimensions: 61" X 30" X30"
Weight: 350 lbs

Return to TOP

Tin Knocker Straight Brake Model TK 622


Great For Crossbreaking 4' Ductwork!

*Includes Floor Stand

TK 622 Straight Brake Specifications:
Capacity: 22 Ga Mild Steel Sheet Metal
Bend Length: 6'
Included: Bolt-on Apron Angle, Floor Model Legs
Beam Lift: 1 1/4"
Dimensions: 78" x 34" x 32"
Weight: 450 lbs
Depth of Box or Pan: 2" 3 sides

Return to TOP



Tin Knocker Straight Brake Model TK 816 Leaf Brake

Tin Knocker offers industrial quality 8' sheet metal brakes of 16 gauge capacities.

Includes these outstanding features:
*Spring steel nose bar for long lasting durable service
*Bronze bushed pivot points with lube zirks
*Heavy plate fabricated frame
*Full length stiffening bar to bend to capacity
*Rebuildable design (brass bushings)



Model TK 816 Specifications:
Capacity: 16 Ga. Mild Steel Sheet Metal
Bend Length: 8'1"
Beam Lift: 2 1/4"
Bolt On Apron Angle Incl
Counter Weights Included
Dimensions: 140"Lx31"Wx60"H
Weight: 2480 lbs
Floor Model

Return to TOP



Tin Knocker Straight Brake Model TK 1016 Leaf Brake

Tin Knocker offers industrial quality 10' sheet metal brakes of 16 gauge capacities.

Includes these outstanding features:
*Spring steel nose bar for long lasting durable service
*Bronze bushed pivot points with lube zirks
*Heavy plate fabricated frame
*Full length stiffening bar to bend to capacity
*Rebuildable design (brass bushings)



Model TK 1016 Specifications:
Capacity: 16 Ga. Mild Steel Sheet Metal
Bend Length: 10'1"
Beam Lift: 2 1/4"
Bolt On Apron Angle Incl
Counter Weights Included
Dimensions: 160"Lx50"Wx60"H
Weight: 3000 lbs
Floor Model

Return to TOP



Tin Knocker TK Letter Brake

Make channel letters and more! Designed to bend sheet metal strips with one or more bent up edges or existing seams. Can also bend 12 inches of straight sheet metal. Foot operated clamping leaves both hands to handle the material. This machine is perfect for the sign manufacturing industry - Channel Letter Brake.

TK Letter Brake Specifications:
Capacity: 20 Ga Mild Steel
Approx. Dimensions: 48”x48”x46”
Approx. Footprint: 25”x22”x42”
Weight: 190 lbs.

Return to TOP

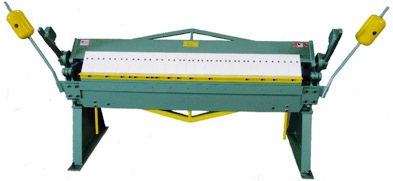

Tin Knocker TK 616 Universal Brake

An incredibly universal hand brake. Featuring box & pan fingers up top and segmented, relocatable bend apron tooling below. Perfect for complex parts to include flange down bends, transverse duct forming & much more. With strategically positioned counter weights this brake makes for easy and smooth manual bending.

TK 616 Universal Brake Specifications:
Capacity with lower tooling flanges: 72” x 16 gauge
Capacity without lower tooling flanges, 72” x 20 gauge
Lift of beam: 1.5”
Front to back ram adjustment: 1/2"
A minimum reverse bend of 5/8"
Mininmum flange width: 1"
Finger widths: 1", 3", and 4"
Lower segment tooling widths of 1", 1.5", 4", 6", 8", 12", and 20"
Upper bending beam tooling (segmented) lengths of 1", 1.5", 4", 6", 8", 12", and 20"
Maximum transverse bend in center of machine: 2"
Maximum transverse bend at end of machine: 3"
Footprint with counter weights: 95" x 38" x 54"
Weight: 2800 lb

Return to TOP
