Tin Knocker Notchers

Tin Knocker TK Edge Notcher

This rotary notcher is for round surface edges for collars and end caps. It is similar to the old Engel Model 750 Edge Notcher.





TK Edge Notcher Specifications:
Capacity: 20 Ga Mild Steel Sheet Metal
Motor: 1/3 HP
Electrics:
110V/1PH/60Hz AC
Depth of Notch: 0 to 3/4"
Width of Notch: 3/16"
Spacing: 3/4" to 1-7/16"
Speed: Variable Minimum 18 FPM
Approx. Overall Dimensions: 26"x16.5"x13"
Approx.: 290 lbs.

Return to TOP

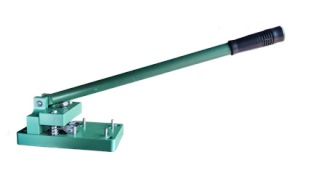

Tin Knocker TK Drive Cleat Notcher

This tool notches drive cleats giving drives a rounded end for an easier installation. Notch drive cleats before or after they are formed. Easy to use with a spring loaded push handle. This tool easily mounts to any bench.



TK Drive Cleat Notcher Specifications:
Capacity: 22-gauge mild steel sheet metal
Machine Dimension: 21” x 4” x 10”
Shipping Dimension: 11” x 4” x 6”
Approximate Weight: 18 lbs.

Return to TOP



Tin Knocker TK 1655 Notcher - Manual

A heavy versatile tool capable of not only notching to capacity but also shearing and piercing operations in lighter gauge. Of heavy cast iron and fabricated construction, this table top machine comes with front gauges and surface ground table. Stand is optional.

TK 1655 Manual Notcher Specifications:
Weight: 170 lbs
Capacity: 16 Ga Mild Steel
Blade Length: 5"
Angle: 90 Degrees
**Optional Stand Available

Return to TOP



Tin Knocker TK 1016 Notcher

Notches up to 6 times faster than hand notching. This 5 headed gang notcher is a fast and easy way to notch sheet metal ducting, in preparation to receive bar, S Cleats and Drive Cleats…or other drive connections. QuickNotch allows you to gang-notch sheet metal hydraulically up to 600% faster than by hand, without layout or scribing. It’s the perfect tool for preparing bar, slip or “s” and drive connections.



TK 1016 Notcher Specifications:
Weight: 880 lbs
Dimensions: 79 x 36 x 36 in
Capacity: 16 – 28 gauge mild steel
No. Notching Heads: 3 V and 2 corner, for 5 total. V Notch. 1 ½” max
Motor: 3 HP
Electrics: Dual Voltage, 115- 230/1/60, 1800 RPM
Optional Heads Aavailable For TDC & TDF Notching



Return to TOP
